MARKAGE MB-1S - Afmetingen

Gamma en afmetingen

Hn\Bn [mm]200x2001000x1600

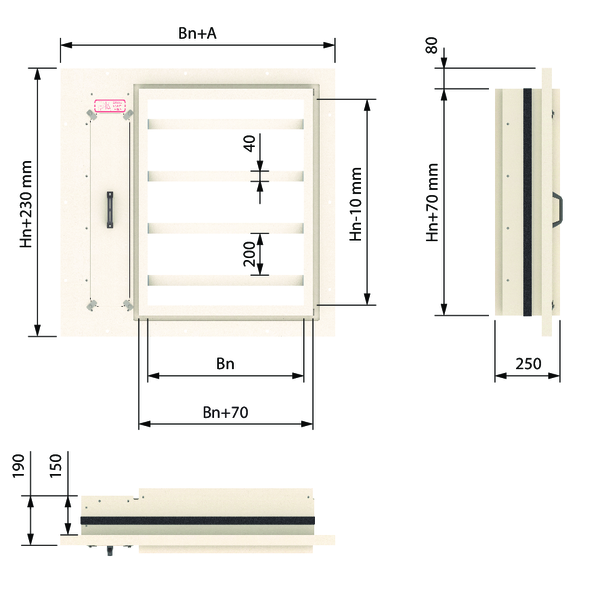

  • Rookbeheersingsklep met kraag voor droge installatie.
  • Voor de afmetingen (Bn x Hn) van 200 x 200 mm tot 1000 x 1600 mm is A = 455 mm.

Gewichten Scroll naar rechts/beneden om de volledige tabel te zien

Hn\Bn [mm]2002503003504004505005506006507007508008509009501000
200kg17,519,220,421,522,723,825,126,225,928,529,730,832,033,134,335,436,6
400kg25,127,128,529,931,332,734,235,635,638,439,841,342,744,145,546,948,3
600kg32,634,836,538,239,841,543,344,945,248,349,951,653,355,056,658,360,0
800kg40,643,145,047,048,950,852,854,855,258,660,662,564,466,468,370,272,2
1000kg49,652,354,556,758,961,163,465,666,369,972,174,376,578,780,983,185,3
1200kg55,358,360,863,265,768,170,673,174,178,080,482,985,387,890,292,795,1
1400kg62,966,268,971,674,377,079,882,583,887,990,693,396,098,8101,5104,2106,9
1600kg70,874,377,380,383,386,289,392,293,898,2101,1104,1107,1110,1113,0116,0119,0
