AVANTAGE 2V60 - Afmetingen

Gamma en afmetingen

Hn\Bn [mm]350x3851100x1105

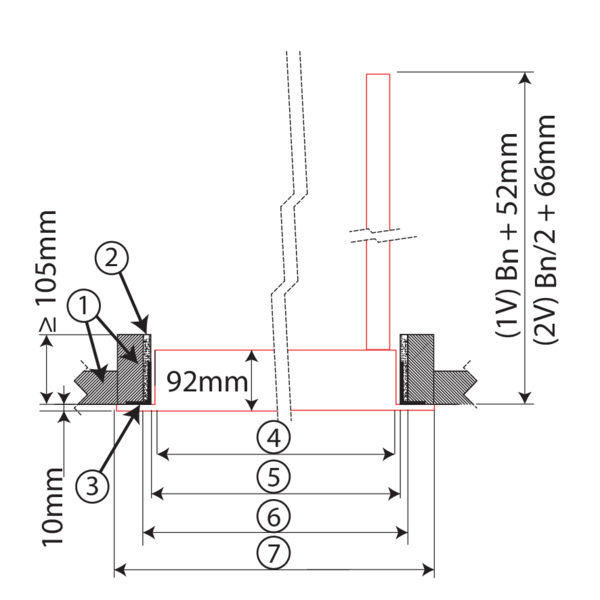

  • 1. Vuurvast materiaal
  • 2. Afdichting indien inbouwkader
  • 3. Inbouwkader (optie)
  • 4. Nominale afmetingen luik Bn x Hn
  • 5. Inbouwafmetingen zonder inbouwkader (Bn+10) x (Hn+10)mm
  • 6. Inbouwafmetingen met inbouwkader (Bn+20) x (Hn+20)mm
  • 7. Buitenafmetingen van het luik (Bn+54) x (Hn+54)mm

Gewichten Scroll naar rechts/beneden om de volledige tabel te zien

Hn\Bn [mm]350380400430450480500530550580600630650680700730750780800830850880900930950980100010501100
385kg7,98,28,48,78,99,29,49,69,810,110,310,610,811,111,211,511,712,012,212,512,713,013,113,413,613,914,114,615,0
415kg8,38,68,89,09,29,59,710,010,210,510,711,011,211,511,712,012,212,512,713,013,213,513,714,014,214,514,715,215,7
430kg8,48,78,99,29,49,79,910,210,410,710,911,211,411,711,912,212,412,713,013,313,513,814,014,314,514,815,015,516,0
445kg8,68,99,19,49,69,910,110,410,610,911,211,511,712,012,212,512,713,013,213,513,714,014,214,514,715,115,315,816,3
475kg8,99,29,49,810,010,310,510,811,011,411,611,912,112,412,613,013,213,513,714,014,214,614,815,115,315,615,816,416,9
480kg9,09,39,59,810,010,410,610,911,111,411,612,012,212,512,713,013,313,613,814,114,314,614,915,215,415,715,916,517,0
505kg9,29,69,810,110,310,710,911,211,511,812,012,312,612,913,113,413,714,014,214,514,815,115,315,615,916,216,417,017,5
530kg9,59,910,110,410,711,011,211,611,812,112,412,712,913,313,513,814,114,414,615,015,215,515,816,116,316,716,917,518,0
535kg9,69,910,110,510,711,111,311,611,912,212,412,813,013,313,613,914,114,514,715,115,315,615,916,216,416,817,017,618,1
565kg9,910,310,510,811,111,411,712,012,312,612,913,213,413,814,014,414,615,015,215,615,816,216,416,817,017,417,618,218,8
580kg10,110,410,711,011,311,611,912,212,512,813,113,413,714,014,314,614,915,215,515,816,116,416,717,017,317,617,918,519,1
595kg10,210,610,811,211,511,812,112,412,713,013,313,713,914,314,514,915,115,515,716,116,316,716,917,317,617,918,218,819,4
625kg10,610,911,211,611,812,212,512,813,113,513,714,114,314,715,015,415,616,016,216,616,917,217,517,918,118,518,819,420,0
630kg10,611,011,211,611,912,312,512,913,113,513,814,214,414,815,015,415,716,116,316,717,017,317,618,018,218,618,919,520,1
655kg10,911,311,511,912,212,612,813,213,513,914,114,514,815,215,415,816,116,516,717,117,417,818,018,418,719,119,320,020,6
680kg11,211,611,812,212,512,913,213,613,814,214,514,915,215,615,816,216,516,917,217,617,818,218,518,919,219,619,820,521,2
685kg11,211,611,912,312,613,013,213,613,914,314,615,015,215,615,916,316,617,017,217,617,918,318,619,019,319,719,920,621,3
715kg11,512,012,212,612,913,313,614,014,314,715,015,415,716,116,416,817,117,517,718,218,418,919,119,519,820,220,521,221,9
730kg11,712,112,412,813,113,513,814,214,514,915,215,615,916,316,617,017,317,718,018,418,719,119,419,820,120,520,821,522,2
745kg11,912,312,613,013,313,714,014,414,715,115,415,816,116,616,817,317,518,018,318,719,019,419,720,120,420,821,121,822,5
775kg12,212,612,913,413,714,114,414,815,115,615,816,316,617,017,317,718,018,518,819,219,519,920,220,720,921,421,722,423,1
780kg12,312,713,013,413,714,214,514,915,215,615,916,416,617,117,417,818,118,518,819,319,620,020,320,721,021,521,822,523,2
805kg12,513,013,313,714,014,514,815,215,516,016,316,717,017,517,818,218,519,019,319,720,020,520,821,221,522,022,323,023,7
830kg12,913,313,614,114,414,915,215,615,916,416,717,217,517,918,218,719,019,519,820,220,521,021,321,822,122,522,823,624,4
835kg12,813,313,614,014,314,815,115,615,916,316,617,117,417,818,218,618,919,419,720,120,420,921,221,722,022,422,723,524,3
865kg13,213,714,014,414,815,215,616,016,316,817,117,617,918,418,719,219,520,020,320,721,121,521,822,322,623,123,424,225,0
880kg13,413,814,214,614,915,415,716,216,517,017,317,818,118,618,919,419,720,220,521,021,321,822,122,622,923,423,724,525,3
895kg13,514,014,314,815,115,615,916,416,717,217,618,018,418,819,219,620,020,520,821,321,622,122,422,923,223,724,024,825,6
925kg13,814,314,715,215,516,016,316,817,217,618,018,518,819,319,620,120,521,021,321,822,122,622,923,423,824,324,625,426,2
930kg13,914,414,715,215,616,116,416,917,217,718,018,518,919,419,720,220,521,021,421,922,222,723,023,523,924,424,725,526,3
955kg14,214,715,015,515,916,416,717,217,618,118,418,919,319,820,120,620,921,421,822,322,623,123,524,024,324,825,226,026,9
980kg14,415,015,315,816,216,717,017,617,918,418,819,319,620,120,521,021,321,922,222,723,123,623,924,424,825,325,726,527,4
985kg14,515,015,415,916,216,817,117,618,018,518,819,419,720,220,621,121,421,922,322,823,223,724,024,524,925,425,826,627,5
1015kg14,815,415,716,216,617,117,518,018,418,919,319,820,120,721,021,621,922,422,823,323,724,224,625,125,526,026,327,228,1
1030kg15,015,515,916,416,817,317,718,218,619,119,520,020,420,921,321,822,222,723,023,623,924,524,825,425,726,326,627,528,4
1045kg15,215,716,116,617,017,517,918,418,819,319,720,220,621,121,522,022,422,923,323,824,224,725,125,726,026,626,927,828,7
1075kg15,516,016,417,017,317,918,318,819,219,720,120,721,021,622,022,522,923,423,824,424,725,325,726,226,627,127,528,429,4
1080kg15,516,116,517,017,418,018,318,919,319,820,220,721,121,722,022,623,023,523,924,424,825,425,726,326,727,227,628,529,5
1105kg15,816,416,817,317,718,318,719,219,620,220,521,121,522,022,423,023,423,924,324,925,325,826,226,827,127,728,129,030,0
