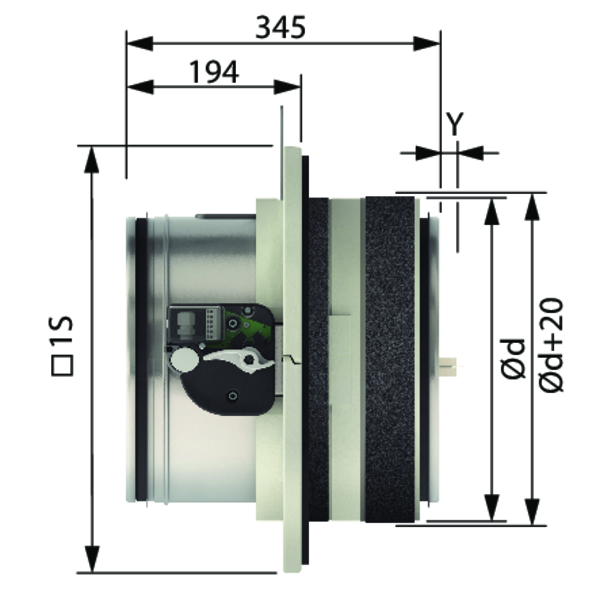

CR120-1S - Afmetingen
Gamma en afmetingen
| ØDn [mm] | 100 | 125 | 160 | 200 | 250 | 315 |
|---|
- Uitsteken klepblad: 20 mm bij ØDn 315 mm
| ØDn [mm] | 315 |
|---|---|
| x | - |
| y | 20 |
| MFUS | ONE (X) | BFL(T) | |
|---|---|---|---|
| P | 72 | 80 | 63 |
| Q | 123 | 136 | 100 |
| Z | 70 | 75 | 58 |
Gewichten Scroll naar rechts/beneden om de volledige tabel te zien
| ØDn [mm] | 100 | 125 | 160 | 200 | 250 | 315 |
|---|---|---|---|---|---|---|
| kg | 5,7 | 6,5 | 7,9 | 9,5 | 11,0 | 12,3 |
