KAMOUFLAGE AP 1V120 - Dimensions

Gamme et dimensions

≥≤
Hn\Ln [mm]350x385700x1165

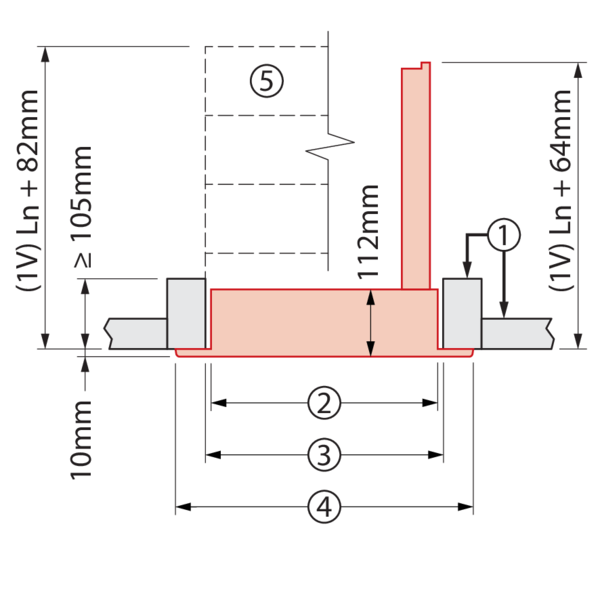

  • 1. Matériau réfractaire
  • 2. Dimensions nominales du volet Ln x Hn
  • 3. Cotes d'encastrement (Ln+10) x (Hn+10)mm. Cotes d'encastrement avec le cadre d'installation : (Ln+20) x (Hn+20)mm
  • 4. Dimensions extérieures du volet (Ln+52) x (Hn+52)mm

Poids Faire défiler vers le bas/la droite pour voir tout le tableau

Hn\Ln [mm]350400450500550600650700
385kg12,513,714,916,217,418,619,921,1
415kg13,014,215,416,717,919,120,321,6
445kg13,514,716,017,218,419,720,922,1
475kg14,015,316,517,719,020,221,522,7
505kg14,515,717,018,219,520,721,923,2
535kg15,016,317,518,820,021,222,523,7
565kg15,516,818,019,320,521,823,024,3
595kg16,017,318,519,821,022,323,524,8
625kg16,617,819,120,321,622,824,125,3
655kg17,118,319,620,922,123,424,625,9
685kg17,618,820,121,322,623,925,126,4
715kg18,119,420,621,923,124,425,726,9
745kg18,619,921,222,423,725,026,227,5
775kg19,120,421,622,924,225,426,728,0
805kg19,620,922,223,424,726,027,328,5
835kg20,121,422,724,025,326,527,829,1
865kg20,621,923,224,525,827,028,329,6
895kg21,222,423,725,026,327,628,930,1
925kg21,723,024,325,526,828,129,430,7
955kg22,223,524,726,027,328,629,931,2
985kg22,724,025,326,627,929,230,531,8
1015kg23,224,525,827,128,429,731,032,3
1045kg23,725,026,327,628,930,231,532,8
1075kg24,225,526,828,129,430,732,033,4
1105kg24,726,127,428,730,031,332,633,9
1135kg25,226,527,829,230,531,833,134,4
1165kg25,827,128,429,731,032,333,635,0
