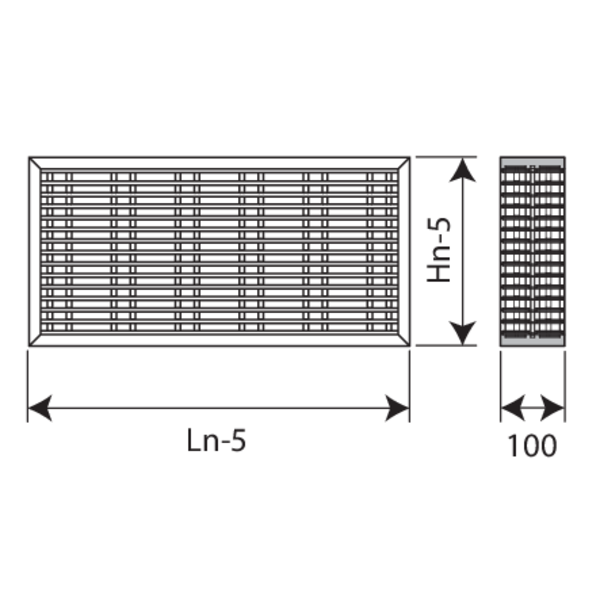

GE120 - Dimensions

Gamme et dimensions

Hn\Ln [mm]150x100800x400
  • Ln/Hn par intervalle de 50 mm

Poids Faire défiler vers le bas/la droite pour voir tout le tableau

Hn\Ln [mm]150200250300350400450500550600650700750800
100kg1,21,51,82,12,42,73,03,43,74,04,34,64,95,2
150kg1,51,92,32,73,13,43,84,24,64,95,35,76,16,5
200kg2,02,53,03,43,94,44,95,45,96,36,87,37,88,3
250kg2,43,03,64,24,85,46,06,67,17,78,38,99,510,1
300kg2,93,64,35,05,76,47,07,78,49,19,810,511,211,9
350kg3,34,14,95,76,57,38,18,99,710,511,312,112,913,7
400kg3,74,55,46,37,28,08,99,810,611,512,413,214,115,0
