VU120 - Dimensions

Gamme et dimensions

≥≤
Hn\Ln [mm]200x2001000x1000
  • Ln/Hn par intervalle de 50 mm; dimensions intermédiaires disponibles sur demande, moyennant supplément (des hauteurs entre ≥ 275 et ≤ 299 mm ne sont pas possibles).

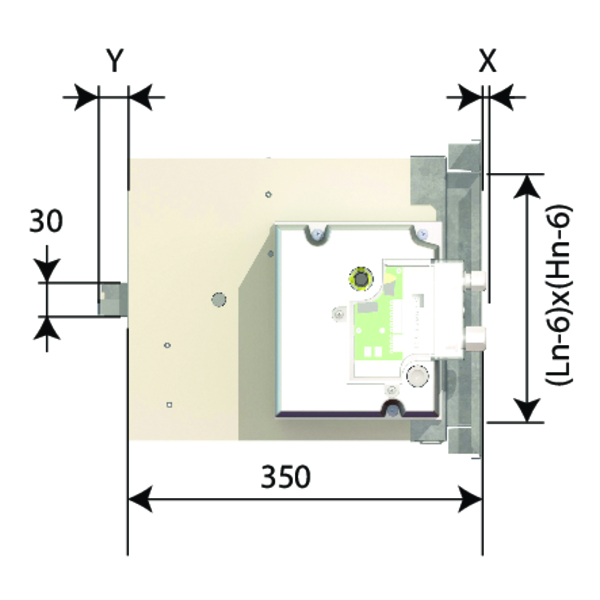

  • Dépassement lame: X = du côté du mécanisme, Y = du côté mur

  • x = Hn/2 - 267 mm
    y = Hn/2 - 96 mm

Hn [mm]2002503003504004505005506006507007508008509009501000
x-------9345984109134159184209234
y4295479104129154179204229254279304329354379404

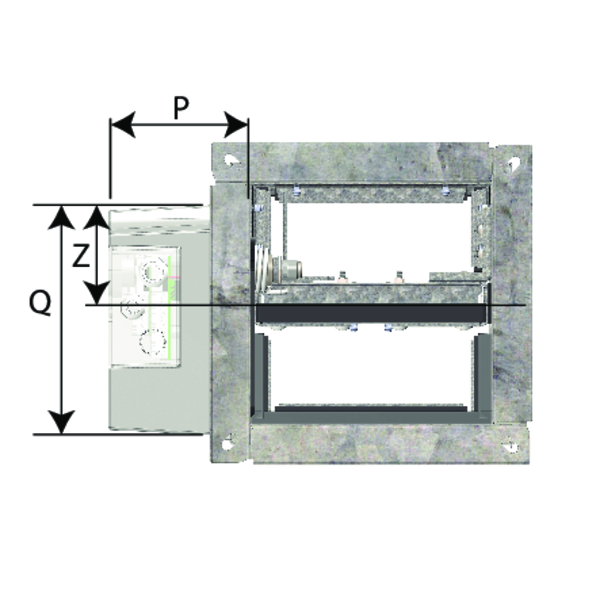

  • Hn < 300 mm
  MANF NF SF BEN
P 115 85 85 105
Q 190 100 100 80
Z 85 105 105 70

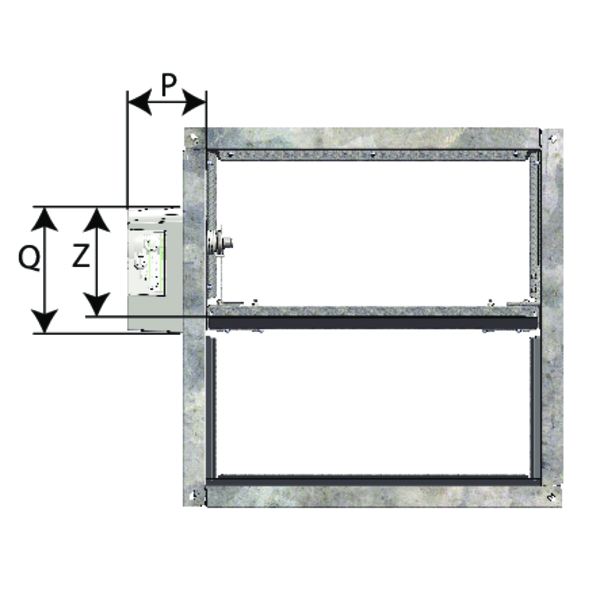

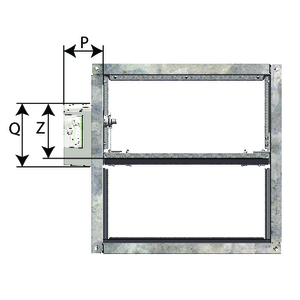

  • Hn ≥ 300 mm
  MANF NF SF BEN
P 115 85 85 105
Q 190 100 100 80
Z 180 105 105 160

Poids Faire défiler vers le bas/la droite pour voir tout le tableau

Hn\Ln [mm]20025030035040045050055060065070075080085090095010001050110011501200
200kg8,39,210,111,112,012,913,814,815,716,617,518,519,420,321,322,223,124,025,025,926,8
250kg9,110,111,112,113,114,115,116,117,118,119,120,121,122,123,124,025,026,027,028,029,0
300kg10,011,112,113,214,315,316,417,418,519,620,621,722,723,824,825,927,028,029,130,131,2
350kg10,912,013,214,315,416,517,618,819,921,022,123,324,425,526,627,828,930,031,132,333,4
400kg11,813,014,215,416,517,718,920,121,322,523,724,926,127,228,429,630,832,033,234,435,6
450kg12,713,915,216,417,718,920,221,422,724,025,226,527,729,030,231,532,734,035,236,537,8
500kg13,514,916,217,518,820,121,522,824,125,426,728,129,430,732,033,334,736,037,338,639,9
550kg14,415,817,218,620,021,322,724,125,526,928,329,731,032,433,835,236,638,039,440,742,1
600kg15,316,818,219,721,122,624,025,526,928,429,831,332,734,235,637,138,540,041,442,944,3
650kg16,217,719,220,722,223,825,326,828,329,831,332,934,435,937,438,940,441,943,545,046,5
700kg17,118,620,221,823,425,026,528,129,731,332,934,536,037,639,240,842,443,945,547,148,7
750kg17,919,621,222,924,526,227,829,531,132,834,436,037,739,341,042,644,345,947,649,250,9
800kg18,820,522,224,025,727,429,130,832,534,235,937,639,441,142,844,546,247,949,651,353,0
850kg19,721,523,325,026,828,630,432,133,935,737,539,241,042,844,646,448,149,951,753,5-
900kg20,622,424,326,128,029,831,633,535,337,239,040,842,744,546,448,250,151,953,7--
950kg21,523,425,327,229,131,032,934,836,738,640,542,444,346,348,250,152,053,9---
1000kg22,324,326,328,330,232,234,236,238,140,142,144,046,048,050,051,953,9----
