GZ60 - Installation
Installation in rigid wall
The product was tested and approved in:
- Aerated concrete ≥ 100 mm | EI 60 (ve i o) | Sealing glue BCM | Type of installation: built-in, sleeves horizontal | 100x100 mm ≤ GZ60 ≤ 800x400 mm
- Aerated concrete ≥ 100 mm | EW 90 (ve i o) | Sealing glue BCM | Type of installation: built-in, sleeves horizontal | 100x100 mm ≤ GZ60 ≤ 800x400 mm
Provide a min. installation opening in the wall = Wn x Hn.
Apply BCM sealing glue on all sides of the grill.
Apply BCM sealing glue on all sides of the grill.

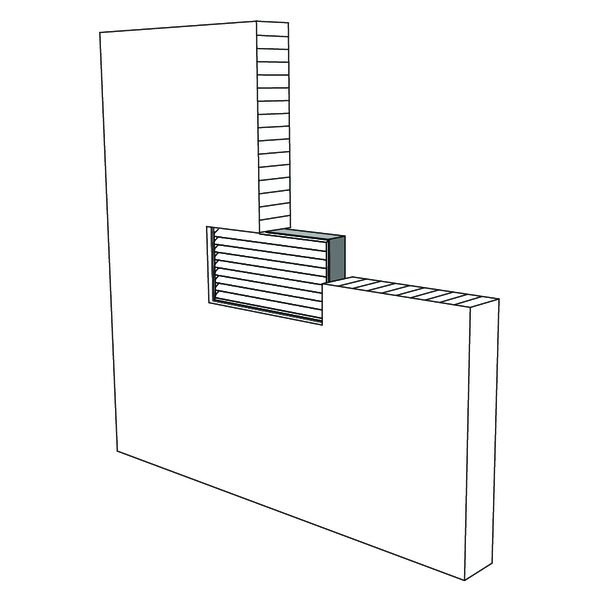

Mount the grill in the wall.
The product must be installed with the lamellas in their horizontal position.
The product must be installed with the lamellas in their horizontal position.
Installation in rigid floor
The product was tested and approved in:
- Aerated concrete ≥ 100 mm | EI 60 (ho i o) | Not applicable | Type of installation: built-in, sleeves horizontal | 100x100 mm ≤ GZ60 ≤ 800x400 mm
- Aerated concrete ≥ 100 mm | EW 60 (ho i o) | Not applicable | Type of installation: built-in, sleeves horizontal | 100x100 mm ≤ GZ60 ≤ 800x400 mm
Provide in the ceiling a min. opening= (Wn+30)x (Hn+30).
Fix in the opening a frame in calcium silicate boards (with a thickness of 15mm) with standard mortar.
Fix in the opening a frame in calcium silicate boards (with a thickness of 15mm) with standard mortar.
Attach calcium silicate support slat (with a thickness of 15mm) at the lower side of the installation.
Install the grill in the floor/
ceiling.
Installation in flexible wall (metal stud gypsum plasterboard wall)
The product was tested and approved in:
- Metal studs gypsum plasterboard Type A (EN 520) ≥ 100 mm | EI 60 (ve i o) | Sealing glue BCM | Type of installation: built-in, sleeves horizontal | 100x100 mm ≤ GZ60 ≤ 800x400 mm
- Metal studs gypsum plasterboard Type A (EN 520) ≥ 100 mm | EW 60 (ve i o) | Sealing glue BCM | Type of installation: built-in, sleeves horizontal | 100x100 mm ≤ GZ60 ≤ 800x400 mm
Provide a minimum installation opening in the wall (Wn+30)x(Hn+30)mm.
Attach two standard gypsum boards with a thickness of 12,5mm to one side of the metal stud wall.
Insulate with stonewool (min. 40kg/m³) and finish with two standard gypsum boards.
Insulate with stonewool (min. 40kg/m³) and finish with two standard gypsum boards.

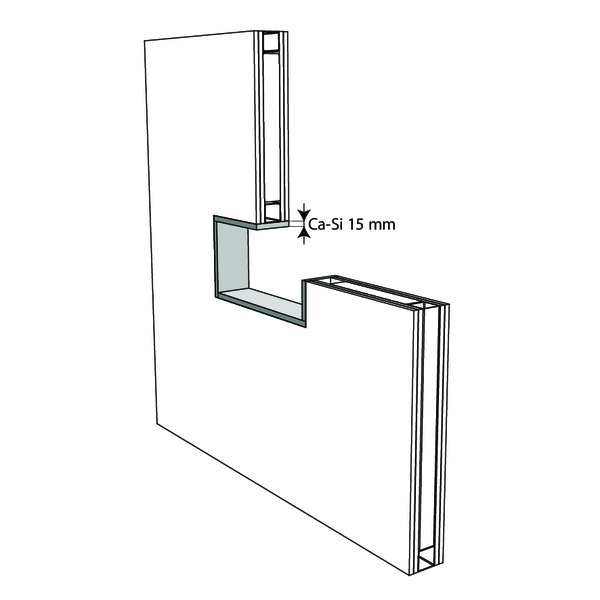

Fix in the opening a frame in calcium silicate boards (with a thickness of 15mm) with standard mortar.
Apply BCM sealing glue on all sides of the grill.
Mount the grill in the wall.
The product must be installed with the lamellas in their horizontal position.
The product must be installed with the lamellas in their horizontal position.
A metal stud gypsum plasterboard wall consists of:
A metal framework made out of horizontal and vertical metal studs (min. thickness 50mm)
Stonewool with a thickness of 40mm and a density of 40 kg/m³ between the boards
Double boarding: two standard gypsum boards on both sides
A metal framework made out of horizontal and vertical metal studs (min. thickness 50mm)
Stonewool with a thickness of 40mm and a density of 40 kg/m³ between the boards
Double boarding: two standard gypsum boards on both sides
Installation in a wooden door panel
The product was tested and approved in:
- Wooden door panel ≥ 50 mm | EI 60 (ve i o) | Sealing glue BCM | Type of installation: built-in, sleeves horizontal | 100x100 mm ≤ GZ60 ≤ 600x400 mm
- Wooden door panel ≥ 50 mm | EW 60 (ve i o) | Sealing glue BCM | Type of installation: built-in, sleeves horizontal | 100x100 mm ≤ GZ60 ≤ 600x400 mm

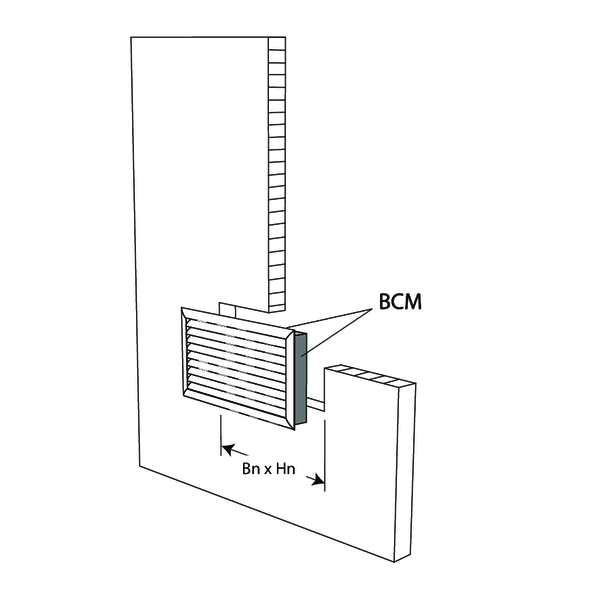

Provide an opening of Wn x Hn in the door.
Apply BCM sealing glue on all sides of the grill.
Apply BCM sealing glue on all sides of the grill.
Mount the grill in the door.
The product must be installed with the lamellas in their horizontal position.
Finish on the other side with the variable finishing frame GzKV.
The product must be installed with the lamellas in their horizontal position.
Finish on the other side with the variable finishing frame GzKV.
General remarks
- The installation must comply with the installation manual and the classification report.
- Rf-t fire resistant grills are always tested in standardised constructions according to EN 1634-1/EN 1364-1/EN 1364-2. The achieved results are valid for similar supporting constructions with a fire resistance, thickness and density equal or superior to the supporting construction used during the test.
