MG2-A - Dimensions

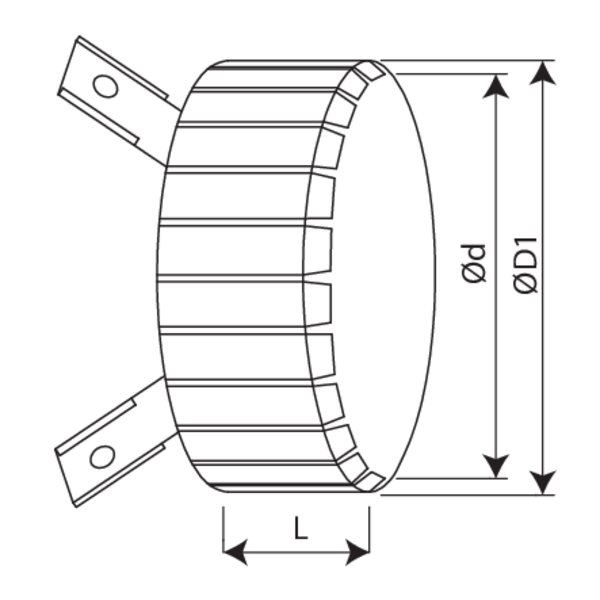

Range and dimensions

Ød [mm]	32	40	50	56	63	75	80	90	100	110
D1 [mm]	48	58	68	74	80	93	110	125	132	140
L [mm]	40	40	40	40	40	40	40	40	40	40
Ød [mm]	125	140	160
D1 [mm]	173	187	206
L [mm]	40	40	40

• Number of fixation points: 2 (Ød 32-75) / 3 (Ød 80-110) / 4 (Ød 125-160)
• D1 = outside diameter of the collar - d = inside diameter of the collar, corresponding to the outside diameter of the pipe

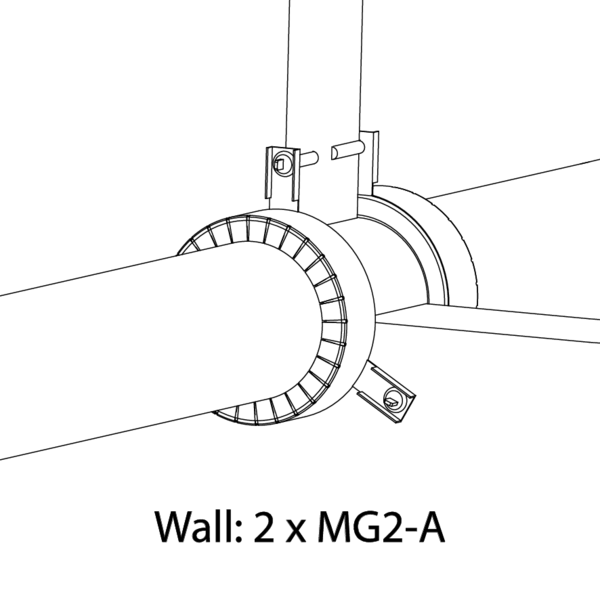

• Wall: 2 x MG2-A

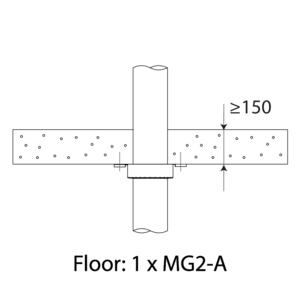

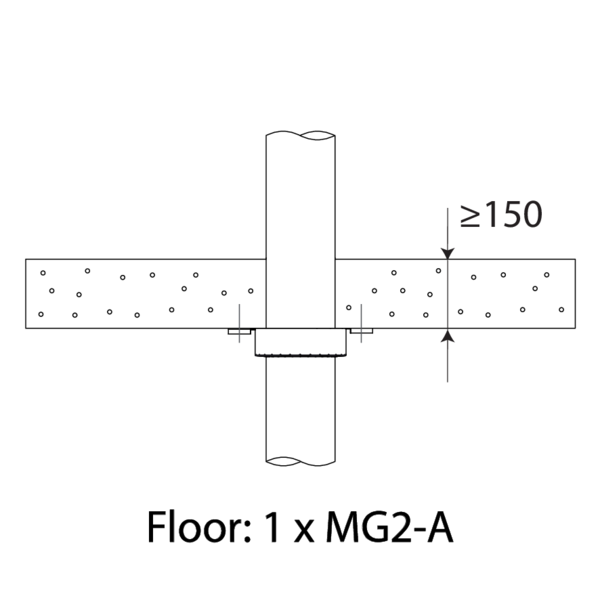

• Floor: 1 x MG2-A
