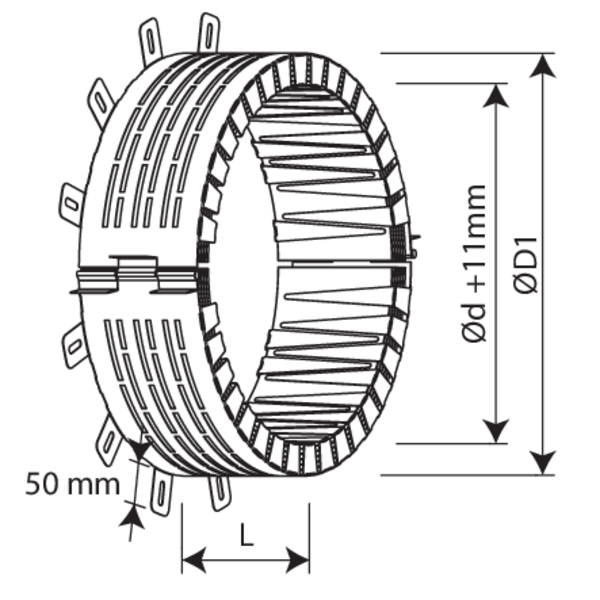

MG2-A XL - Dimensions
Range and dimensions
| Ød [mm] | 200 | 250 | 315 | 355 | 400 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| D1 [mm] | 271 | 321 | 396 | 436 | 481 | |||||
| L [mm] | 103 | 103 | 155 | 155 | 155 |
- Number of fixation points: 8 (Ø d 200) / 10 (Ø d 250-355) / 12 (Ø d 400)
- D1 = outside diameter of the collar - d = inside diameter of the collar, corresponding to the outside diameter of the pipe

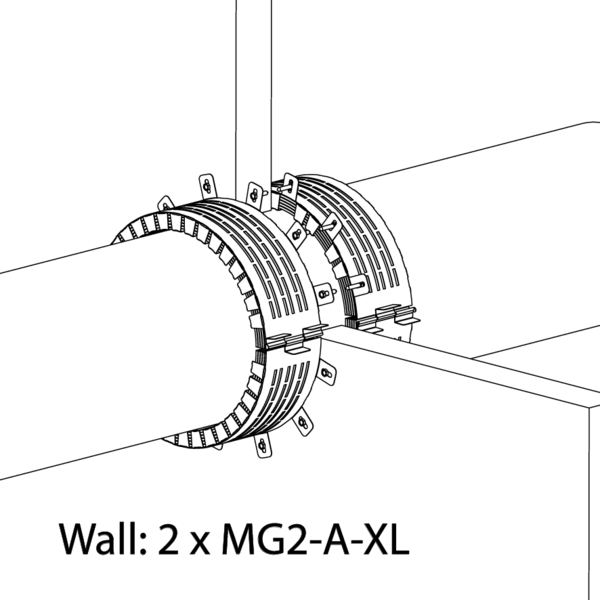

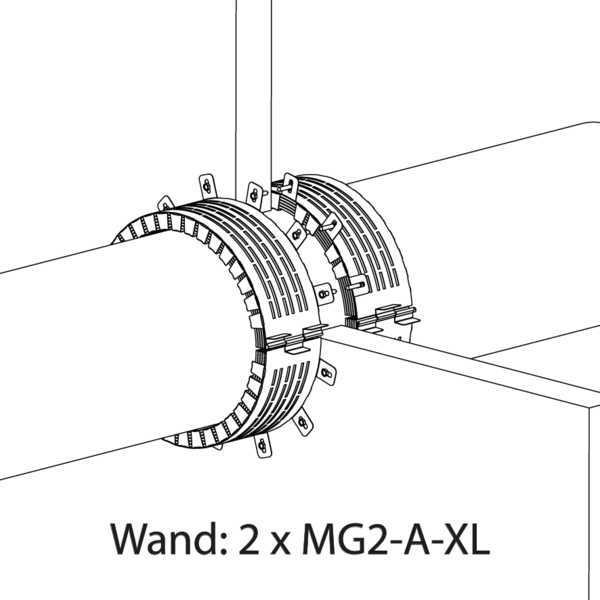

- Wall: 2 x MG2-A-XL

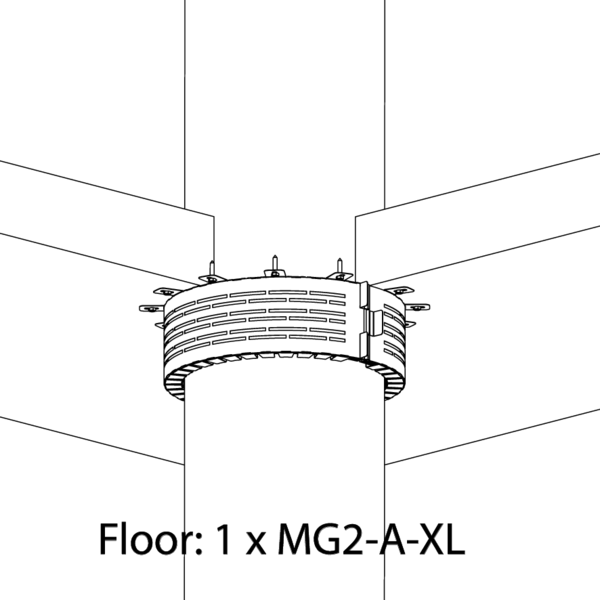

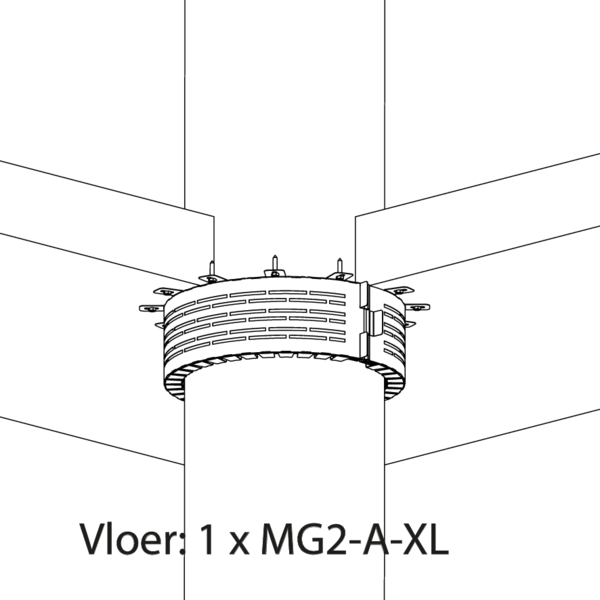

- Floor: 1 x MG2-A-XL
Weights Scroll down/right to view the entire table
| Ød [mm] | 200 | 250 | 315 | 355 | 400 |
|---|---|---|---|---|---|
| kg | 2,7 | 3,2 | 7,0 | 7,8 | 9,6 |
