CU2 ATEX - Features

Features

  • Suitable for built-in installation
  • Minimal distance allowed
  • Suitable for rigid wall, rigid floor and light wall (metal stud gypsum plasterboard wall), gypsum blocks and sandwich panel wall
  • Sealing with fire resistant stone wool boards allowed, also for asymmetric opening
  • Air tightness in accordance with EN 1751: class ATC 4 (formerly B), class ATC 3 in option (formerly C)
  • Tested according to EN 1366-2 up to 500 Pa
  • Operating mechanism outside the wall
  • Maintenance-free
  • For indoor use
  • Operating temperature: max. 50°C
  • Intermediate dimensions on request
  • Hygiene certificate for CU2: H > 600 or W > 800 (option when ordering)

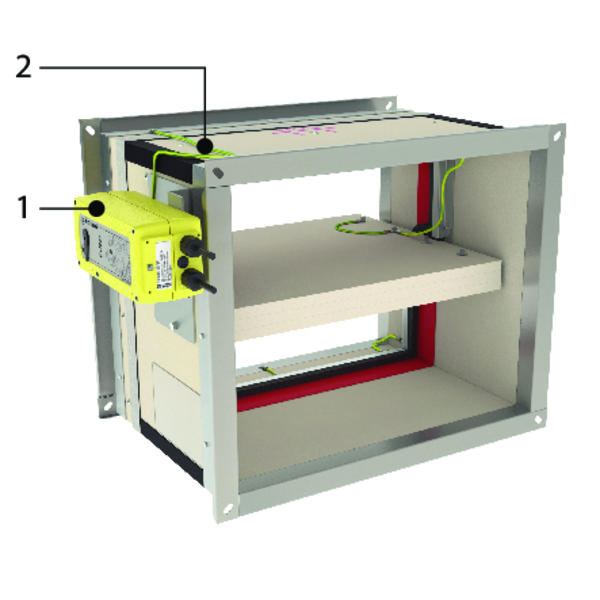

Components

Components
  1. Explosion proof mechanism
  2. Equipotential connection
