CU-LT-L500 - Options and kits
Options - at the time of order
IFW CU-LT - Pre-assembled installation block
Pre-assembled installation block
GDA_L - Option for sliding installation of the fire damper in a light wall when dry-mounted against the ceiling. Mechanism damper left.
Option for sliding mounting of the fire damper in a lightweight wall when dry-mounted against the ceiling. This option guarantees the fire resistance of the fire damper after possible deflection of the floor slab above due to high loads or large spans. The GDA allows fast, simple and secure mounting between 0 and 75 mm from the ceiling. On the GDA-L, the mechanism is located on the left side of the product.

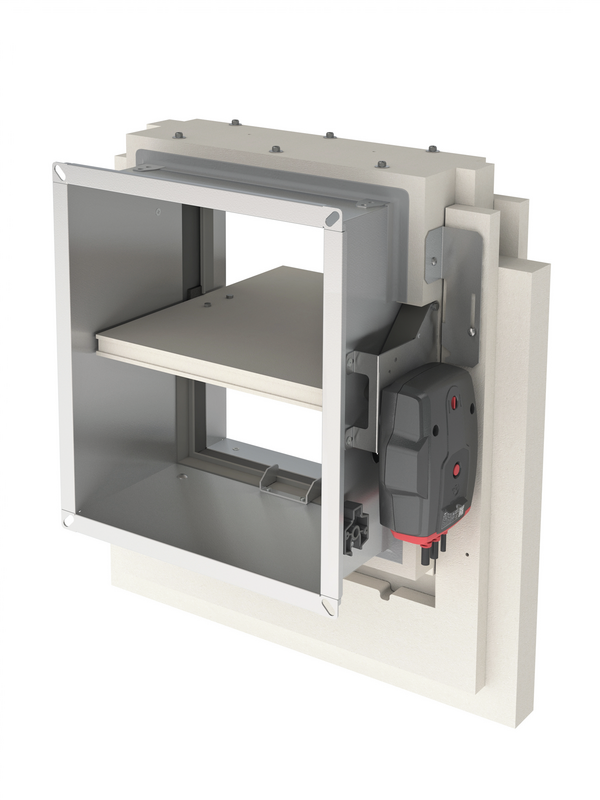

GDA_R - Option for sliding installation of the fire damper in a light wall when dry-mounted against the ceiling. Mechanism damper right.
Option for sliding mounting of the fire damper in a lightweight wall when dry-mounted against the ceiling. This option guarantees the fire resistance of the fire damper after possible deflection of the floor slab above due to high loads or large spans. The GDA allows fast, simple and secure mounting between 0 and 75 mm from the ceiling. On the GDA-R, the mechanism is located on the right side of the product.
UL - Inspection shutter (set of 2)
Inspection shutter (set of 2)
Kits - after-sales services (repair, upgrade)
IFW CU-LT - Built-in block for CU-LT (supplied in separate parts, in size 800 x 600 mm, can be cut to size)
Built-in block for CU-LT (supplied in separate parts, in size 800 x 600 mm, can be cut to size)
KIT UG8 - The UG8 optical smoke detector is a standalone unit for duct mounting. It samples air in the ventilation duct via the venturi-tube and analyses it in the housing situated outside of the duct. The UG8 is CE-marked product, certified according to EN54-27. It can be connected directly with a fire damper: in the event of smoke detection, the UG8 shuts off the power to the fire damper actuator and closes the damper.
The UG8 optical smoke detector is a standalone unit for duct mounting. It samples air in the ventilation duct via the venturi-tube and analyses it in the housing situated outside of the duct. The UG8 is CE-marked product, certified according to EN54-27.
It can be connected directly with a fire damper: in the event of smoke detection, the UG8 shuts off the power to the fire damper actuator and closes the damper.
The UG8 is fitted with LEDs showing normal operation, smoke alarm, contamination and service alarms. The status can also be checked remotely via relay outputs.
