CRE60 - Features

Features

  • Suitable for surface-mount in rigid wall, rigid floor and light wall (metal stud gypsum plasterboard wall)
  • Suitable for installation remote from the wall
  • Tested according to EN 1366-2 up to 300 Pa
  • Operating mechanism mounted at 70 mm distance from the damper casing in order to facilitate isolation
  • Maintenance-free
  • For indoor use
  • Operating temperature: max. 50°C
  • P-marking

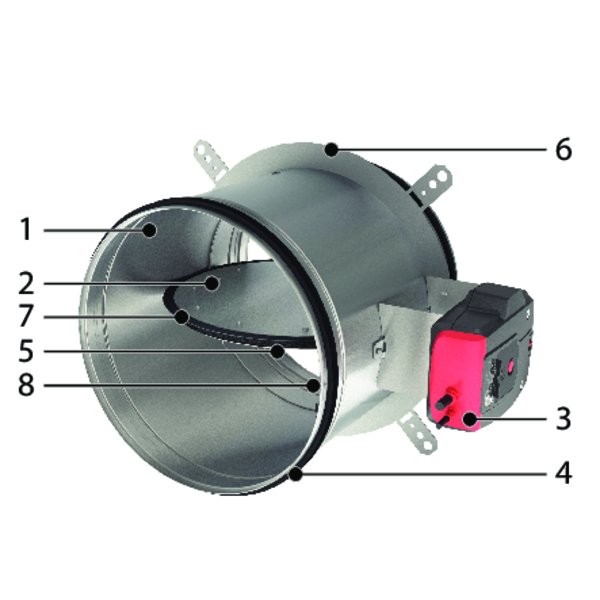

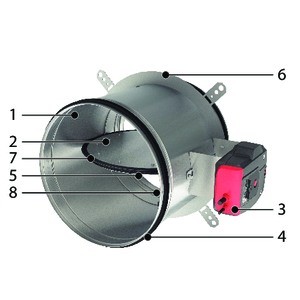

Components

Components
  1. Casing in galvanised steel
  2. Damper blade
  3. Operating mechanism
  4. Rubber sealing ring
  5. Intumescent strip
  6. Mounting ring for fixation to wall / ceiling
  7. Sealing ring for damper blade
  8. Fusible link
