CRE60 - Dimensions
Range and dimensions
| ØDn [mm] | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 |
|---|

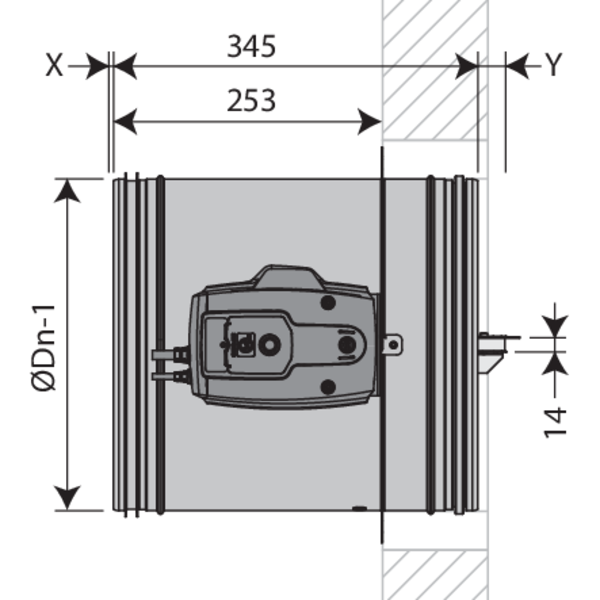

- Exceeding blade: X = on the mechanism side, Y = on the wall side
| ØDn [mm] | 250 | 315 | 400 | 500 | 630 |
|---|---|---|---|---|---|
| x | - | - | - | 30 | 95 |
| y | 2 | 35 | 77 | 127 | 192 |

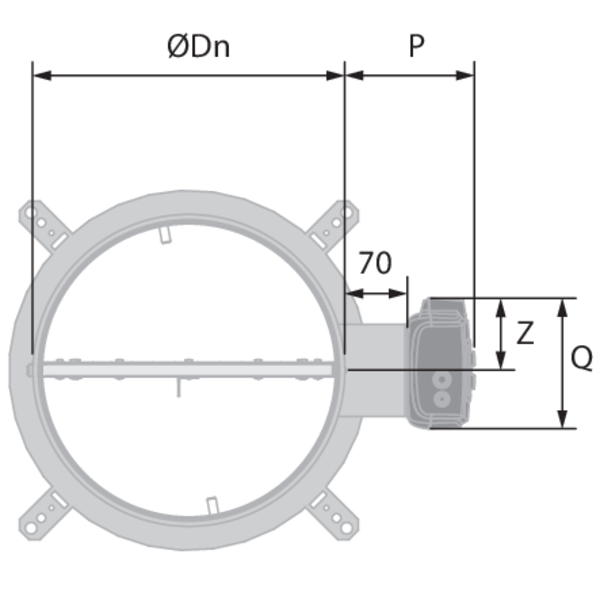

- CRE60 + ONE L
| ONE | BFN(T) | |
|---|---|---|
| P | 140 | 125 |
| Q | 136 | 98 |
| Z | 75 | 50 |
Weights Scroll down/right to view the entire table
| ØDn [mm] | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 |
|---|---|---|---|---|---|---|---|---|---|
| kg | 3,1 | 3,1 | 3,8 | 4,6 | 5,6 | 6,7 | 8,0 | 10,8 | 14,0 |
