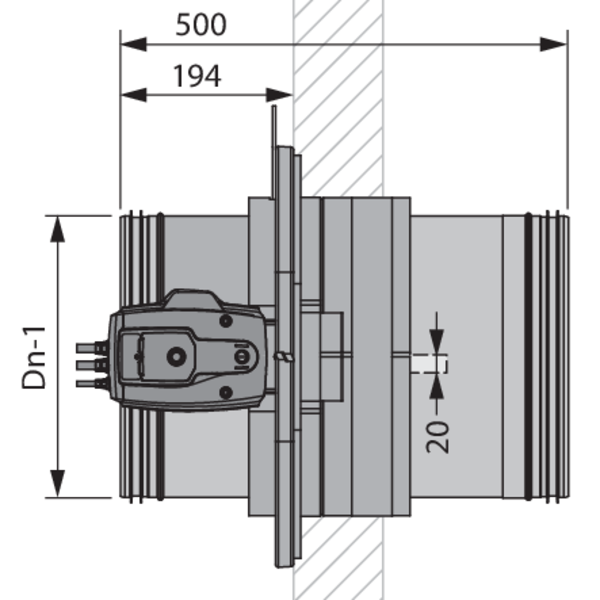

CR120-1S-L500 - Dimensions
Range and dimensions
| ØDn [mm] | 100 | 125 | 160 | 200 | 250 | 315 | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| L [mm] | 500 | 500 | 500 | 500 | 500 | 500 |
- Exceeding damper blade: 20 mm for ØDn 315 mm
| MFUS | ONE (X) | BFL(T) | |
|---|---|---|---|
| P | 72 | 80 | 63 |
| Q | 123 | 136 | 100 |
| Z | 70 | 75 | 58 |
Weights Scroll down/right to view the entire table
| ØDn [mm] | 100 | 125 | 160 | 200 | 250 | 315 |
|---|---|---|---|---|---|---|
| kg | 5,9 | 6,8 | 8,7 | 10,1 | 11,7 | 13,2 |
