VRE - Circular E600 60/120 S single compartment smoke control damper.

Circular E600 60/120 S single compartment smoke control damper.

Circular E600 60/120 S single compartment smoke control damper.

benefits

  • Easy to install
  • Optimal free air passage and minimal pressure loss
  • Optimal acoustic performance
  • Air-tightness class ATC 3 according to EN1751 (formerly C)

Features

  • Suitable for installation remote from the wall or floor
  • Tested according to EN 1366-10
  • Compliant with EN 12101-8
  • Maintenance-free
  • For indoor use

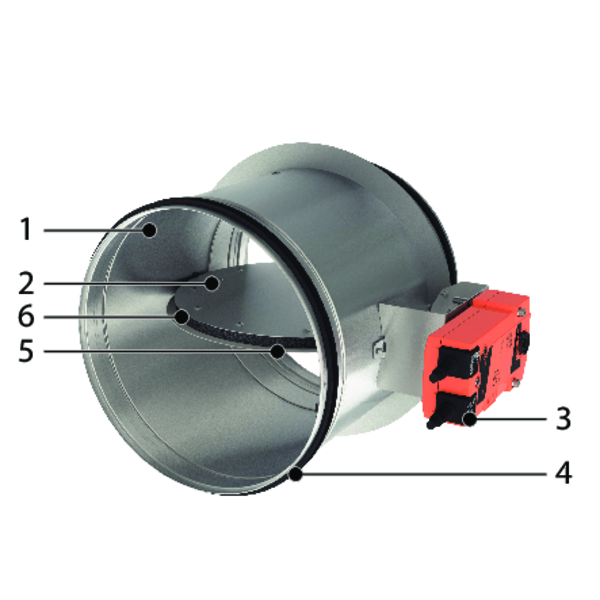

Components

Components
  1. Casing in galvanised steel
  2. Damper blade
  3. Operating mechanism
  4. Rubber sealing ring
  5. Intumescent strip
  6. Sealing ring for damper blade
