AVANTAGE 2V120 - Installation
Operation: opening
Operation: closing

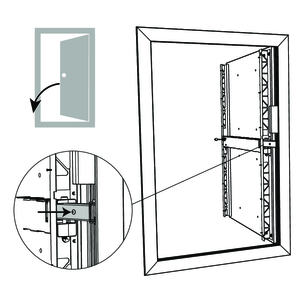

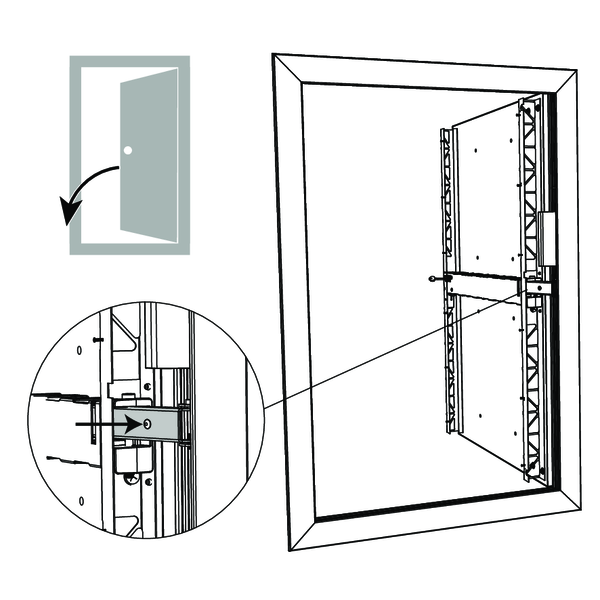

![1](/derived/PIM/PICS/V/OPERATION/300_V_AVA_1V_CLOSE_1.png)
Resetting 1V
Manual:

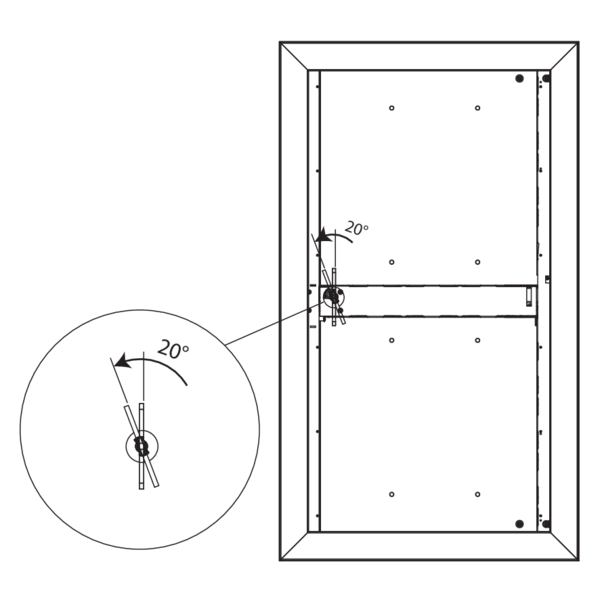

Turn the key 20° clock wise and withdraw it. Push the blocking mechanism. Close the shutter by pulling the metal profile.
Manual:
Turn the key 20° clock wise and withdraw it. Push the blocking mechanism. Close the shutter by pulling the metal profile.

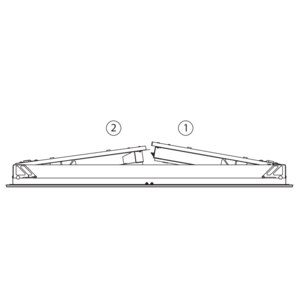

![3](/derived/PIM/PICS/V/OPERATION/300_V_AVA_2V_CLOSE_2.png)

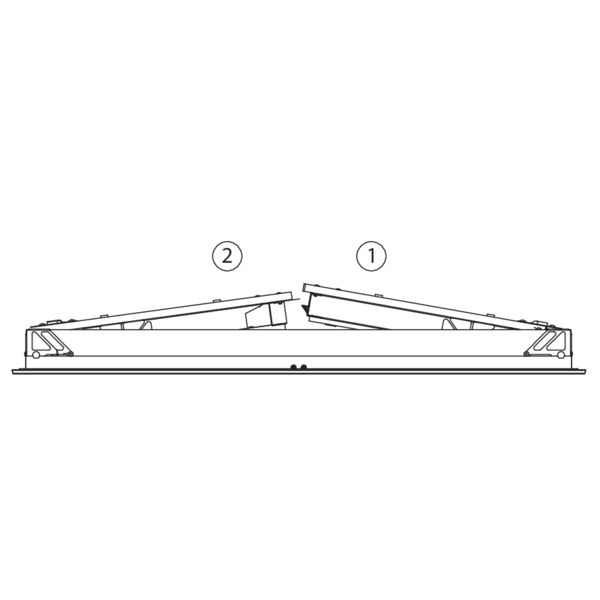

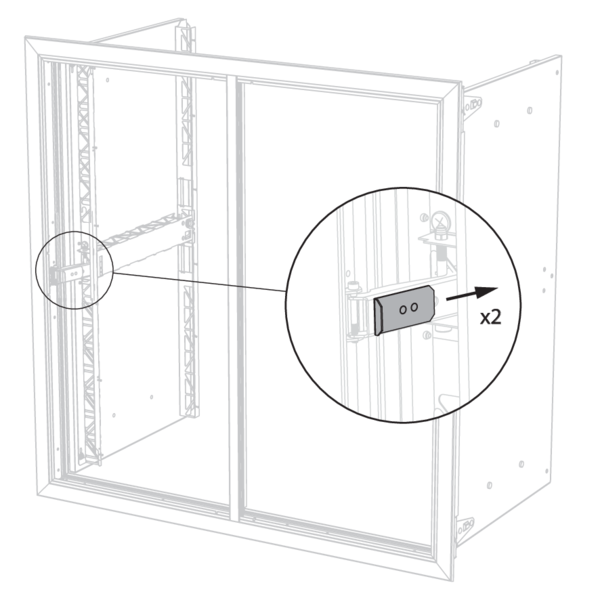

Turn the key 20° clock wise and withdraw it. Close both shutters together by pulling on the metal profiles. Make sure that the shutters hook in each other as illustrated.

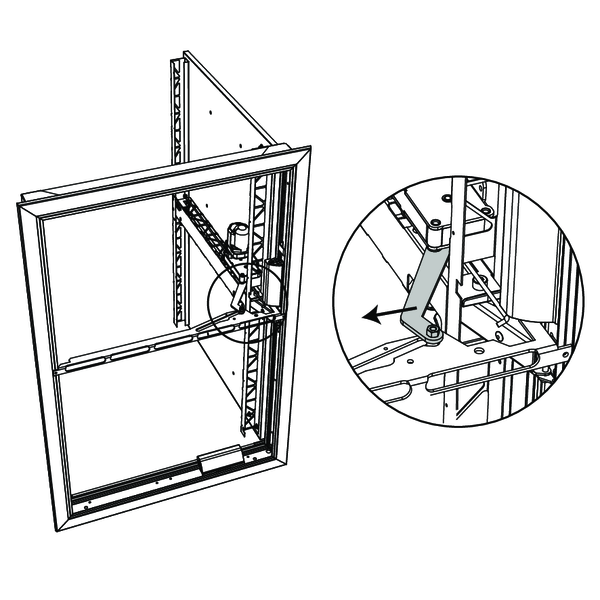

![4](/derived/PIM/PICS/V/OPERATION/300_V_AVA_ME_1V_CLOSE_1.png)
Resetting ME
Manual:
Turn the key 20° clock wise and withdraw it. Push the blocking mechanism. Close the shutter by pulling the metal profile.
Remote:
Power the actuator for at least 90 sec. (respect the prescribed voltage 24 or 48 Vdc).
The resetting stops automatically when the shutter is closed.
Switch off the power supply for at least 90 sec. in between each resetting cycle.
Manual:
Turn the key 20° clock wise and withdraw it. Push the blocking mechanism. Close the shutter by pulling the metal profile.
Remote:
Power the actuator for at least 90 sec. (respect the prescribed voltage 24 or 48 Vdc).
The resetting stops automatically when the shutter is closed.
Switch off the power supply for at least 90 sec. in between each resetting cycle.
Electrical wiring
![2](/derived/PIM/PICS/V/INST/300_V_KAM_AVA_INST_ELECTR_2_DRILL_TUNNEL.png)
Drill a hole in the refractory material at the chosen corner(s). The galvanised part at the inside of the shutter is already indented.
Caution: after passing and fixing the cables, you need to seal the drilled hole in the refractory plates around the electrical cables with fire resistant adhesive sealant (BCM f.e.).
Caution: after passing and fixing the cables, you need to seal the drilled hole in the refractory plates around the electrical cables with fire resistant adhesive sealant (BCM f.e.).
![4](/derived/PIM/PICS/V/INST/300_V_KAM_AVA_INST_ELECTR_4_CABLING.png)
Lead the cables through the opening. Use the protective sleeve (1), the fixation clips (2) and the plastic cable clamp (3) to attach the cables to the frame. Lead the cables to the connection box through the grommet (4) and connect according to the electrical connection diagram.
Comply with the installation rules according to article 6.1 of NF S 61-932.
Comply with the installation rules according to article 6.1 of NF S 61-932.

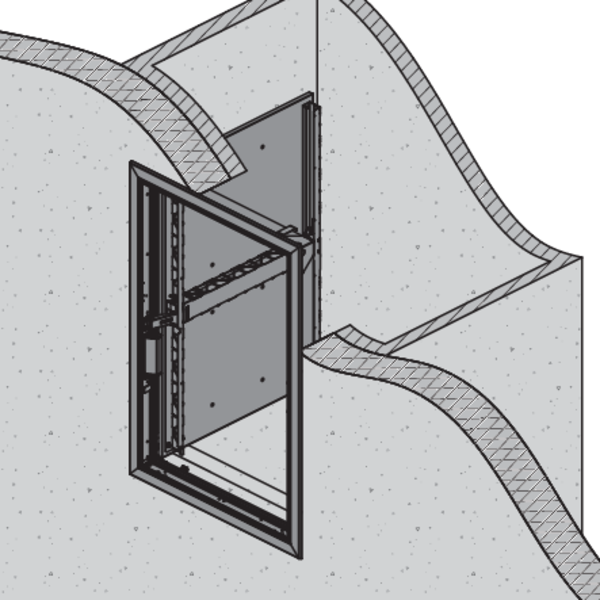

Installation into vertical concrete shaft with mounting frame
The product was tested and approved in:
- Concrete ≥ 70 mm | EI 90 (ved i o) S 1500 AA multi | Avantage 120 | Type of installation: in duct/shaft-mounted 0/180°. Minimal in-between distances authorised. | 300x385 mm ≤ Avantage 1V ≤ 700x1075 mm; 350x385 mm ≤ Avantage 2V ≤ 1100x1105 mm; 350x385 mm ≤ Avantage 1V ME ≤ 700x1075 mm

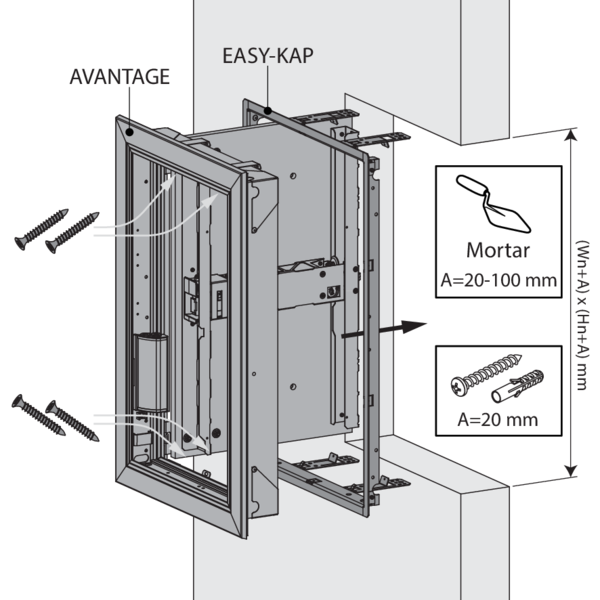

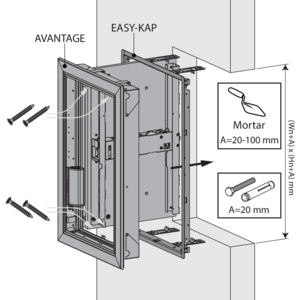

![1](/derived/PIM/PICS/V/INST/300_V_AVA_1V_INST_CONCRETE_EASY-KAP_3D.png)
In case the mounting frame is screwed:
Make an opening with dimensions (W+20) x (H+20) mm.
In case the mounting frame is fixed with mortar:
Make an opening with dimensions (W+20) x (H+20) mm till (W+100) x (H+100) mm.
Make an opening with dimensions (W+20) x (H+20) mm.
In case the mounting frame is fixed with mortar:
Make an opening with dimensions (W+20) x (H+20) mm till (W+100) x (H+100) mm.
![2](/derived/PIM/PICS/V/INST/300_V_EASY-KAP_INST_2.png)
The mounting frame should always be fastened to the concrete duct with screws and dowels (Ø 6 x minimum 60 mm, steel or stainless steel).
For an opening with dimensions up to (W+20) x (H+20) mm:
Two fixing lugs are provided at the bottom and at the top of the mounting frame: fold these against the duct and fasten the mounting frame with 4 screws Ø 6 x 60 mm, taking care not to misshape it. These screws can be inserted through any of the punched holes in the lugs, depending on the thickness of the duct wall. The finished opening must have the same size as the mounting frame (W+10) x (H+10) mm.
For an opening with dimensions up to (W+100) x (H+100) mm:
Apply mortar around the opening to reduce the opening to the outer dimensions of the frame, then proceed as mentioned above to fasten the frame into the opening. Make sure that the gap between the frame and the opening is sealed completely with mortar.
The mortar must harden completely before the damper is fastened to the mounting frame.
For an opening with dimensions up to (W+20) x (H+20) mm:
Two fixing lugs are provided at the bottom and at the top of the mounting frame: fold these against the duct and fasten the mounting frame with 4 screws Ø 6 x 60 mm, taking care not to misshape it. These screws can be inserted through any of the punched holes in the lugs, depending on the thickness of the duct wall. The finished opening must have the same size as the mounting frame (W+10) x (H+10) mm.
For an opening with dimensions up to (W+100) x (H+100) mm:
Apply mortar around the opening to reduce the opening to the outer dimensions of the frame, then proceed as mentioned above to fasten the frame into the opening. Make sure that the gap between the frame and the opening is sealed completely with mortar.
The mortar must harden completely before the damper is fastened to the mounting frame.
![3](/derived/PIM/PICS/V/INST/300_V_KAP_INST_2.png)
Put aside the screws that are affixed to one of the cross slats, then unscrew the 4 cross slats of the mounting frame and fold the 8 fastening plates in the frame.
![5](/derived/PIM/PICS/V/INST/300_V_KAM_1V_INST_CONCRETE_EASY-KAP_D.png)
Open and position the shutter in the mounting frame. If VM magnet: remove the key from the lock to open the shutter.
Fasten the shutter onto the mounting frame with the 4 screws supplied, as shown in the drawing. Tightening the screws pulls the shutter towards the wall until its final position. You can also slightly correct the angle of the shutter with respect to the mounting frame.
Connect the mechanism according to the wiring diagram.
Check the mobility of the shutter.
Fasten the shutter onto the mounting frame with the 4 screws supplied, as shown in the drawing. Tightening the screws pulls the shutter towards the wall until its final position. You can also slightly correct the angle of the shutter with respect to the mounting frame.
Connect the mechanism according to the wiring diagram.
Check the mobility of the shutter.
Installation into vertical concrete shaft without mounting frame
The product was tested and approved in:
- Concrete ≥ 70 mm | EI 90 (ved i o) S 1500 AA multi | Avantage 120 | Type of installation: in duct/shaft-mounted 0/180°. Minimal in-between distances authorised. | 300x385 mm ≤ Avantage 1V ≤ 700x1075 mm; 350x385 mm ≤ Avantage 2V ≤ 1100x1105 mm; 350x385 mm ≤ Avantage 1V ME ≤ 700x1075 mm
![1](/derived/PIM/PICS/V/INST/300_V_KAM_1V_INST_SHAFT_EASY-KAP_C.png)
Rotate the four fastening plates on the damper 90° (to the upright position).
The fastening plates are not used for an installation without a mounting frame.
The fastening plates are not used for an installation without a mounting frame.
![2](/derived/PIM/PICS/V/INST/300_V_AVA_1V_INST_CONCRETE_1_3D.png)

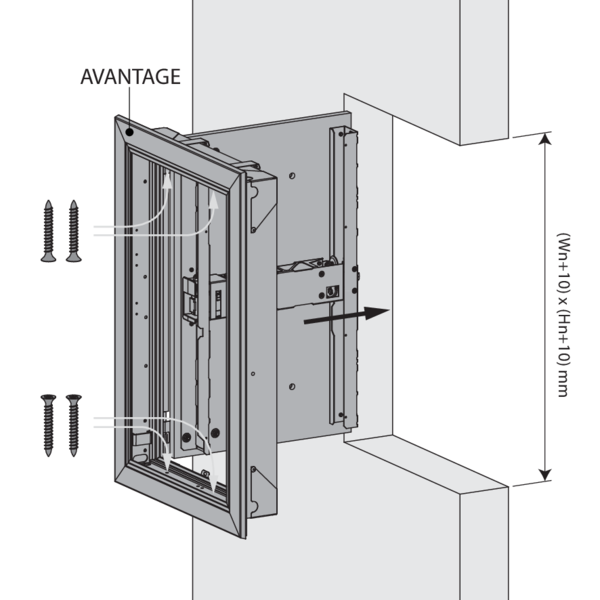

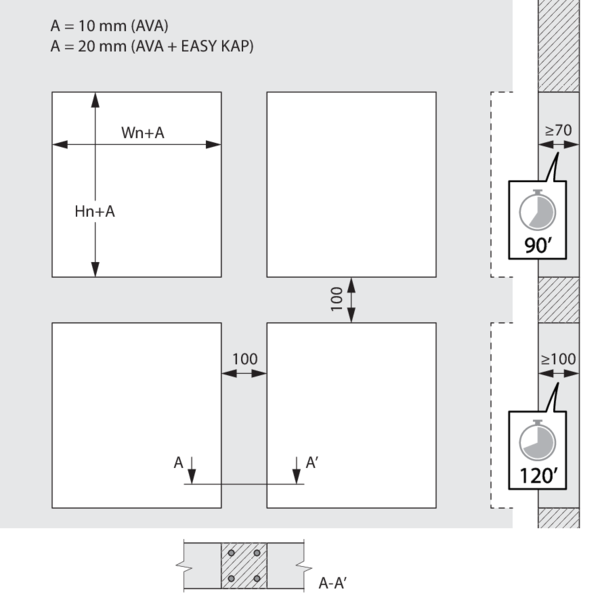

Make an opening with dimensions (W+10) x (H+10) mm.
Open and position the shutter in the opening. If VM magnet: remove the key from the lock to open the shutter.
Fix the shutter in the opening using 4 screws and dowels Ø6 x 40 mm.
Connect the mechanism according to the wiring diagram.
Check the mobility of the shutter.
Open and position the shutter in the opening. If VM magnet: remove the key from the lock to open the shutter.
Fix the shutter in the opening using 4 screws and dowels Ø6 x 40 mm.
Connect the mechanism according to the wiring diagram.
Check the mobility of the shutter.

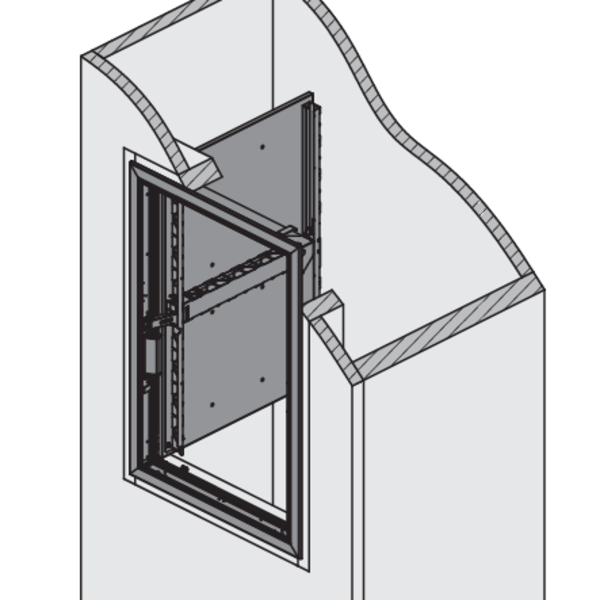

Installation into vertical duct with built-in mounting frame: general instructions for all types of shafts (other than concrete)

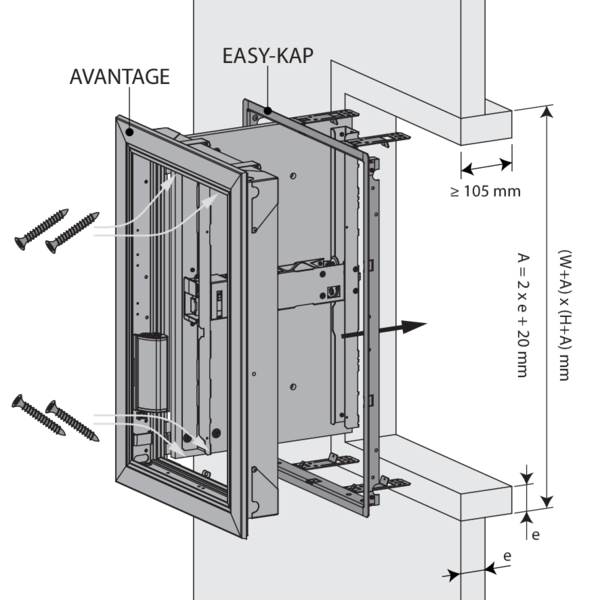

![1](/derived/PIM/PICS/V/INST/300_V_AVA_1V_INST_SHAFT_EASY-KAP_3D.png)
Make an opening with dimensions (W+A) x (H+A) mm. A = 2 x thickness sleeve (e) + 20 mm .
Fit a sleeve of the same type and thickness of the duct (thickness e) of minimum 105 mm deep in the opening.
See details per type of shaft hereafter.
Fit a sleeve of the same type and thickness of the duct (thickness e) of minimum 105 mm deep in the opening.
See details per type of shaft hereafter.
![2](/derived/PIM/PICS/V/INST/300_V_EASY-KAP_INST_1.png)
Fasten and seal the mounting frame. See details per type of duct hereafter.
Two fixing lugs are provided at the bottom and at the top of the mounting frame: fold these against the sleeve. When fixed with screws, fasten the mounting frame to the sleeve with chipboard screws Ø 6 x e mm. These screws can be fixed in one of the openings provided for this purpose, depending on the depth of the sleeve.
Take care not to misshape the frame during its installation. The finished opening must have the same size as the mounting frame (W+10) x (H+10) mm.
Two fixing lugs are provided at the bottom and at the top of the mounting frame: fold these against the sleeve. When fixed with screws, fasten the mounting frame to the sleeve with chipboard screws Ø 6 x e mm. These screws can be fixed in one of the openings provided for this purpose, depending on the depth of the sleeve.
Take care not to misshape the frame during its installation. The finished opening must have the same size as the mounting frame (W+10) x (H+10) mm.
![3](/derived/PIM/PICS/V/INST/300_V_KAP_INST_2.png)
Put aside the screws that are affixed to one of the cross slats, then unscrew the 4 cross slats of the mounting frame and fold the 8 fastening plates in the frame.
![5](/derived/PIM/PICS/V/INST/300_V_KAM_1V_INST_SHAFT_EASY-KAP_D.png)
Open and position the shutter in the mounting frame. If VM magnet: remove the key from the lock to open the shutter.
Fasten the shutter onto the mounting frame with the 4 screws supplied, as shown in the drawing. Tightening the screws pulls the shutter towards the wall until its final position. You can also slightly correct the angle of the shutter with respect to the mounting frame.
Connect the mechanism according to the wiring diagram.
Check the mobility of the shutter.
Fasten the shutter onto the mounting frame with the 4 screws supplied, as shown in the drawing. Tightening the screws pulls the shutter towards the wall until its final position. You can also slightly correct the angle of the shutter with respect to the mounting frame.
Connect the mechanism according to the wiring diagram.
Check the mobility of the shutter.
Installation into vertical duct (without a mounting frame): general instructions for all types of shafts (other than concrete)
![1](/derived/PIM/PICS/V/INST/300_V_KAM_1V_INST_SHAFT_EASY-KAP_C.png)
Rotate the four fastening plates on the damper 90° (to the upright position).
The fastening plates are not used for an installation without a mounting frame.
The fastening plates are not used for an installation without a mounting frame.

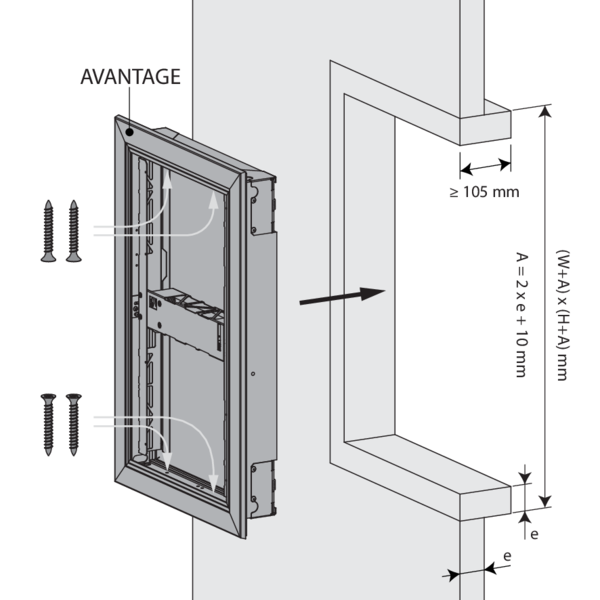

![2](/derived/PIM/PICS/V/INST/300_V_AVA_1V_INST_SHAFT_3D_1.png)

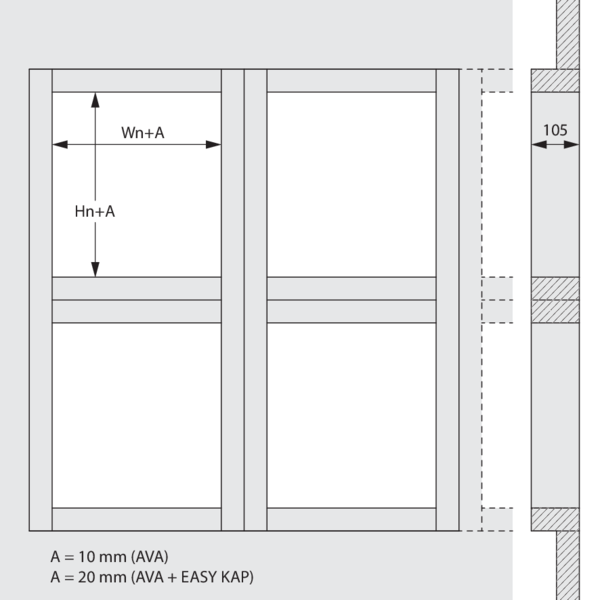

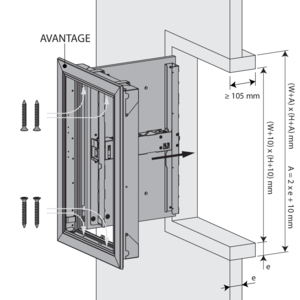

Make an opening with dimensions (W+A) x (H+A) mm. A = 2 x thickness sleeve (e) + 10 mm.
Fit a sleeve of the same type and thickness of the duct (thickness e) of minimum 105 mm deep in the opening.
Open and position the shutter in the opening. If VM magnet: remove the key from the lock to open the shutter.
Fix the shutter in the opening using 4 screws Ø6 x 40 mm.
Caution: make sure that the screws don't exceed the sleeve's thickness!
Connect the mechanism according to the wiring diagram.
Check the mobility of the shutter.
Fit a sleeve of the same type and thickness of the duct (thickness e) of minimum 105 mm deep in the opening.
Open and position the shutter in the opening. If VM magnet: remove the key from the lock to open the shutter.
Fix the shutter in the opening using 4 screws Ø6 x 40 mm.
Caution: make sure that the screws don't exceed the sleeve's thickness!
Connect the mechanism according to the wiring diagram.
Check the mobility of the shutter.
Installation into vertical duct PROMATECT L500
The product was tested and approved in:
- Promatect L500 ≥ 40 mm | EI 90 (ved i o) S 1500 AA multi | Avantage 120 | Type of installation: in duct/shaft-mounted 0/180°. Minimal in-between distances authorised. | 300x385 mm ≤ Avantage 1V ≤ 700x1075 mm; 350x385 mm ≤ Avantage 2V ≤ 1100x1105 mm; 350x385 mm ≤ Avantage 1V ME ≤ 700x1075 mm
- Promatect L500 ≥ 50 mm | EI 120 (ved i o) S 1500 AA multi | Avantage 120 | Type of installation: in duct/shaft-mounted 0/180°. Minimal in-between distances authorised. | 300x385 mm ≤ Avantage 1V ≤ 700x1075 mm; 350x385 mm ≤ Avantage 2V ≤ 1100x1105 mm; 350x385 mm ≤ Avantage 1V ME ≤ 700x1075 mm
Installation into vertical duct GEOFLAM (LIGHT) / GEOTEC
The product was tested and approved in:
- Geoflam ≥ 35 mm | EI 90 (ved i o) S 1500 AA multi | Avantage 120 | Type of installation: in duct/shaft-mounted 0/180°. Minimal in-between distances authorised. | 300x385 mm ≤ Avantage 1V ≤ 700x1075 mm; 350x385 mm ≤ Avantage 2V ≤ 1100x1105 mm; 350x385 mm ≤ Avantage 1V ME ≤ 700x1075 mm
- Geoflam ≥ 45 mm | EI 120 (ved i o) S 1500 AA multi | Avantage 120 | Type of installation: in duct/shaft-mounted 0/180°. Minimal in-between distances authorised. | 300x385 mm ≤ Avantage 1V ≤ 700x1075 mm; 350x385 mm ≤ Avantage 2V ≤ 1100x1105 mm; 350x385 mm ≤ Avantage 1V ME ≤ 700x1075 mm
- Geoflam Light ≥ 35 mm | EI 120 (ved i o) S 1500 AA multi | Avantage 120 | Type of installation: in duct/shaft-mounted 0/180°. Minimal in-between distances authorised. | 300x385 mm ≤ Avantage 1V ≤ 700x1075 mm; 350x385 mm ≤ Avantage 2V ≤ 1100x1105 mm; 350x385 mm ≤ Avantage 1V ME ≤ 700x1075 mm
- Geotec ≥ 45 mm | EI 120 (ved i o) S 1500 AA multi | Avantage 120 | Type of installation: in duct/shaft-mounted 0/180°. Minimal in-between distances authorised. | 300x385 mm ≤ Avantage 1V ≤ 700x1075 mm; 350x385 mm ≤ Avantage 2V ≤ 1100x1105 mm; 350x385 mm ≤ Avantage 1V ME ≤ 700x1075 mm
![1](/derived/PIM/PICS/V/INST/300_V_AVA_1V_INST_SHAFT_EASY-KAP_3D.png)
Installation with mounting frame:
Coat the edges of the opening with adhesive plaster type PLACOL (in case of Geoflam) or GEOCOL (S) (in case of Geotec).
In case of Geotec you can also assemble the sleeve with glue and screws Ø 5 x (2 x e) mm and affix the assembled sleeve to the duct wall with glue and screws Ø 5 x (2 x e) mm every 100 mm.
Seal the joints between uprights and cross pieces and between the lining and the wall with vegetable fibre caulking and plaster or with GEOCOL (S) (in case of Geotec).
The finished opening must have the same size as the mounting frame (W+10) x (H+10) mm. Two fixing lugs are provided at the bottom and at the top of the mounting frame: fold these against the sleeve. Caulk the mounting frame to the duct with vegetable fibre or (in case of Geotec) you can also coat the opening with Geocol (S) and fasten the mounting frame with screws of Ø 5 x e mm. Take care not to misshape the frame.
Coat the edges of the opening with adhesive plaster type PLACOL (in case of Geoflam) or GEOCOL (S) (in case of Geotec).
In case of Geotec you can also assemble the sleeve with glue and screws Ø 5 x (2 x e) mm and affix the assembled sleeve to the duct wall with glue and screws Ø 5 x (2 x e) mm every 100 mm.
Seal the joints between uprights and cross pieces and between the lining and the wall with vegetable fibre caulking and plaster or with GEOCOL (S) (in case of Geotec).
The finished opening must have the same size as the mounting frame (W+10) x (H+10) mm. Two fixing lugs are provided at the bottom and at the top of the mounting frame: fold these against the sleeve. Caulk the mounting frame to the duct with vegetable fibre or (in case of Geotec) you can also coat the opening with Geocol (S) and fasten the mounting frame with screws of Ø 5 x e mm. Take care not to misshape the frame.
![2](/derived/PIM/PICS/V/INST/300_V_AVA_1V_INST_SHAFT_3D_1.png)
Installation without mounting frame:
Coat the edges of the opening with adhesive plaster type PLACOL (in case of Geoflam) or GEOCOL (S) (in case of Geotec).
Seal the joints between uprights and cross pieces and between the lining and the wall with vegetable fibre caulking and plaster or with GEOCOL (S) (in case of Geotec).
In case of Geotec you can also assemble the sleeve with glue and screws Ø 5 x (2 x e) mm and affix the assembled sleeve to the duct wall with glue and screws Ø 5 x (2 x e) mm every 100 mm.
Coat the edges of the opening with adhesive plaster type PLACOL (in case of Geoflam) or GEOCOL (S) (in case of Geotec).
Seal the joints between uprights and cross pieces and between the lining and the wall with vegetable fibre caulking and plaster or with GEOCOL (S) (in case of Geotec).
In case of Geotec you can also assemble the sleeve with glue and screws Ø 5 x (2 x e) mm and affix the assembled sleeve to the duct wall with glue and screws Ø 5 x (2 x e) mm every 100 mm.
Installation into vertical duct TECNIVER
The product was tested and approved in:
- Tecniver ≥ 45 mm | EI 90 (ved i o) S 1500 AA multi | Avantage 120 | Type of installation: in duct/shaft-mounted 0/180°. Minimal in-between distances authorised. | 300x385 mm ≤ Avantage 1V ≤ 700x1075 mm; 350x385 mm ≤ Avantage 2V ≤ 1100x1105 mm; 350x385 mm ≤ Avantage 1V ME ≤ 700x1075 mm
- Tecniver ≥ 50 mm | EI 120 (ved i o) S 1500 AA multi | Avantage 120 | Type of installation: in duct/shaft-mounted 0/180°. Minimal in-between distances authorised. | 300x385 mm ≤ Avantage 1V ≤ 700x1075 mm; 350x385 mm ≤ Avantage 2V ≤ 1100x1105 mm; 350x385 mm ≤ Avantage 1V ME ≤ 700x1075 mm
![1](/derived/PIM/PICS/V/INST/300_V_AVA_1V_INST_SHAFT_EASY-KAP_3D.png)
Installation with mounting frame:
Put glue type CF GLUE on the uprights and cross pieces and between the lining and the wall. Screw the sleeve using chipboard screws Ø5 x 70 mm at 150 mm intervals.
The finished opening must have the same size as the mounting frame (W+10) x (H+10) mm. Two fixing lugs are provided at the bottom and at the top of the mounting frame: fold these against the sleeve. First coat the opening with glue CF GLUE. Glue the mounting frame to the lining taking care not to misshape it.
Put glue type CF GLUE on the uprights and cross pieces and between the lining and the wall. Screw the sleeve using chipboard screws Ø5 x 70 mm at 150 mm intervals.
The finished opening must have the same size as the mounting frame (W+10) x (H+10) mm. Two fixing lugs are provided at the bottom and at the top of the mounting frame: fold these against the sleeve. First coat the opening with glue CF GLUE. Glue the mounting frame to the lining taking care not to misshape it.
Installation into vertical duct GLASROC F V500
The product was tested and approved in:
- Glasroc F V500 ≥ 50 mm | EI 120 (ved i o) S 1500 AA multi | Avantage 120 | Type of installation: in duct/shaft-mounted 0/180°. Minimal in-between distances authorised. | 300x385 mm ≤ Avantage 1V ≤ 700x1075 mm; 350x385 mm ≤ Avantage 2V ≤ 1100x1105 mm; 350x385 mm ≤ Avantage 1V ME ≤ 700x1075 mm
![1](/derived/PIM/PICS/V/INST/300_V_AVA_1V_INST_SHAFT_EASY-KAP_3D.png)
Installation with mounting frame:
Put glue type GLASROC F V500 on the uprights and cross pieces and between the lining and the wall. Screw the sleeve using chipboard screws Ø5 x 70 mm at 150 mm intervals.
The finished opening must have the same size as the mounting frame (W+10) x (H+10) mm. Two fixing lugs are provided at the bottom and at the top of the mounting frame: fold these against the sleeve. First coat the opening with glue GLASROC F V500. Glue the mounting frame to the lining taking care not to misshape it.
Put glue type GLASROC F V500 on the uprights and cross pieces and between the lining and the wall. Screw the sleeve using chipboard screws Ø5 x 70 mm at 150 mm intervals.
The finished opening must have the same size as the mounting frame (W+10) x (H+10) mm. Two fixing lugs are provided at the bottom and at the top of the mounting frame: fold these against the sleeve. First coat the opening with glue GLASROC F V500. Glue the mounting frame to the lining taking care not to misshape it.
Installation into vertical duct EXTHAMAT
The product was tested and approved in:
- Exthamat ≥ 35 mm | EI 120 (ved i o) S 1500 AA multi | Avantage 120 | Type of installation: in duct/shaft-mounted 0/180°. Minimal in-between distances authorised. | 300x385 mm ≤ Avantage 1V ≤ 700x1075 mm; 350x385 mm ≤ Avantage 2V ≤ 1100x1105 mm; 350x385 mm ≤ Avantage 1V ME ≤ 700x1075 mm
- Exthamat ≥ 30 mm | EI 90 (ved i o) S 1500 AA multi | Avantage 120 | Type of installation: in duct/shaft-mounted 0/180°. Minimal in-between distances authorised. | 300x385 mm ≤ Avantage 1V ≤ 700x1075 mm; 350x385 mm ≤ Avantage 2V ≤ 1100x1105 mm; 350x385 mm ≤ Avantage 1V ME ≤ 700x1075 mm
![1](/derived/PIM/PICS/V/INST/300_V_AVA_1V_INST_SHAFT_EASY-KAP_3D.png)
Installation with mounting frame:
Coat the edges of the opening with adhesive plaster.
Seal the joints between uprights and cross pieces and between the lining and the wall with vegetable fibre caulking and plaster.
The finished opening must have the same size as the mounting frame (W+10) x (H+10) mm. Two fixing lugs are provided at the bottom and at the top of the mounting frame: fold these against the sleeve. Caulk the mounting frame to the duct with vegetable fiber caulking and plaster and taking care not to misshape it.
Coat the edges of the opening with adhesive plaster.
Coat the edges of the opening with adhesive plaster.
Seal the joints between uprights and cross pieces and between the lining and the wall with vegetable fibre caulking and plaster.
The finished opening must have the same size as the mounting frame (W+10) x (H+10) mm. Two fixing lugs are provided at the bottom and at the top of the mounting frame: fold these against the sleeve. Caulk the mounting frame to the duct with vegetable fiber caulking and plaster and taking care not to misshape it.
Coat the edges of the opening with adhesive plaster.
Installation into vertical duct DESENFIRE (HD/THD/STR)
The product was tested and approved in:
- Desenfire HD ≥ 35 mm | EI 120 (ved i o) S 1500 AA multi | Avantage 120 | Type of installation: in duct/shaft-mounted 0/180°. Minimal in-between distances authorised. | 300x385 mm ≤ Avantage 1V ≤ 700x1075 mm; 350x385 mm ≤ Avantage 2V ≤ 1100x1105 mm; 350x385 mm ≤ Avantage 1V ME ≤ 700x1075 mm
- Desenfire ≥ 45 mm | EI 120 (ved i o) S 1500 AA multi | Avantage 120 | Type of installation: in duct/shaft-mounted 0/180°. Minimal in-between distances authorised. | 300x385 mm ≤ Avantage 1V ≤ 700x1075 mm; 350x385 mm ≤ Avantage 2V ≤ 1100x1105 mm; 350x385 mm ≤ Avantage 1V ME ≤ 700x1075 mm
- Desenfire THD ≥ 25 mm | EI 90 (ved i o) S 1500 AA multi | Avantage 120 | Type of installation: in duct/shaft-mounted 0/180°. Minimal in-between distances authorised. | 300x385 mm ≤ Avantage 1V ≤ 700x1075 mm; 350x385 mm ≤ Avantage 2V ≤ 1100x1105 mm; 350x385 mm ≤ Avantage 1V ME ≤ 700x1075 mm
![1](/derived/PIM/PICS/V/INST/300_V_AVA_1V_INST_SHAFT_EASY-KAP_3D.png)
Installation with mounting frame:
Coat the edges of the opening with adhesive plaster, type FACILIS.
Seal the joints between uprights and cross pieces and between the lining and the wall with vegetable fibre caulking and plaster.
The finished opening must have the same size as the mounting frame (W+10) x (H+10) mm. Two fixing lugs are provided at the bottom and at the top of the mounting frame: fold these against the sleeve. Caulk the mounting frame to the duct with vegetable fiber caulking and plaster and taking care not to misshape it.
Coat the edges of the opening with adhesive plaster, type FACILIS.
Seal the joints between uprights and cross pieces and between the lining and the wall with vegetable fibre caulking and plaster.
The finished opening must have the same size as the mounting frame (W+10) x (H+10) mm. Two fixing lugs are provided at the bottom and at the top of the mounting frame: fold these against the sleeve. Caulk the mounting frame to the duct with vegetable fiber caulking and plaster and taking care not to misshape it.
Installation at minimal distances

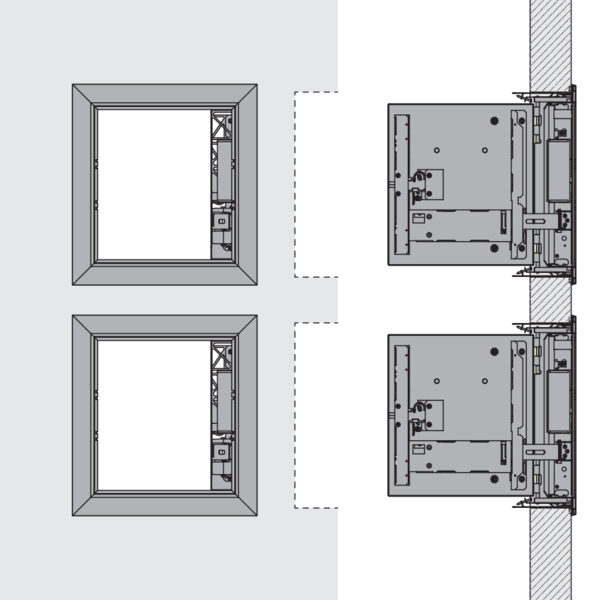

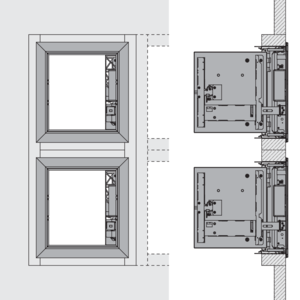

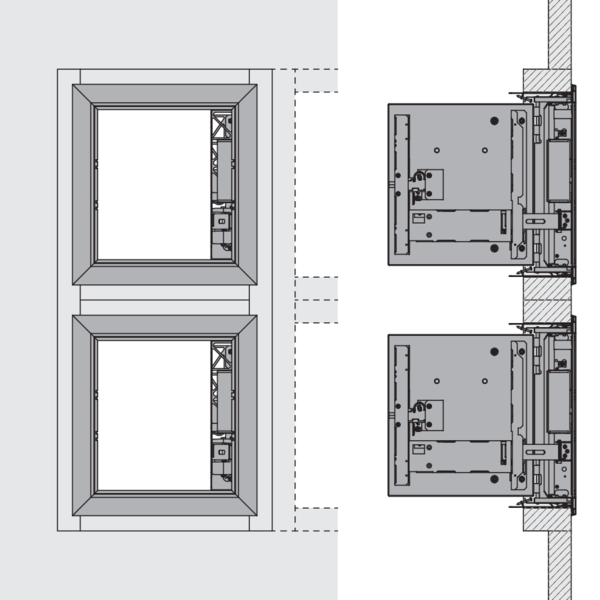

![1](/derived/PIM/PICS/V/INST/300_V_AVA_x2_INST_SHAFT.png)
The shutters can be installed at minimal distance on top of or next to each other, if they are mounted in separate sleeves made from the duct material with the required fire resistance. It is advised not to exceed a 4 x 2 configuration (W x H).
![2](/derived/PIM/PICS/V/INST/300_V_AVA_x4_INST_SHAFT.png)
In case several shutters are mounted at a minimal distance, the bearing and reinforcement points of the duct must be adjusted in proportion to the increased weight. The installation of the duct must comply with the classification report delivered by the duct manufacturer.
General remarks
- The installation must comply with the installation manual and the classification report.
- The installation of the smoke control duct must comply with the classification report delivered by the manufacturer.
- Axis orientation: see the declaration of performance.
- Avoid the obstruction of adjoining smoke control ducts.
- Verify if the blade can move freely.
- Rf-t smoke dampers may be applied to smoke control ducts that have been tested according to EN 1366-8 and EN 1366-9 as appropriate, constructed from similar materials with a fire resistance, thickness and density equal or superior to these of the tested materials.
- Caution: when fitting, the product should be handled with care and remain protected from any sealing products.
- Caution: before putting the installation into operation, clean off all the dust and dirt.
- Caution: bear in mind the blade’s clearance inside the smoke control duct.
