GE120-XL - Installation
Installation in rigid wall
The product was tested and approved in:

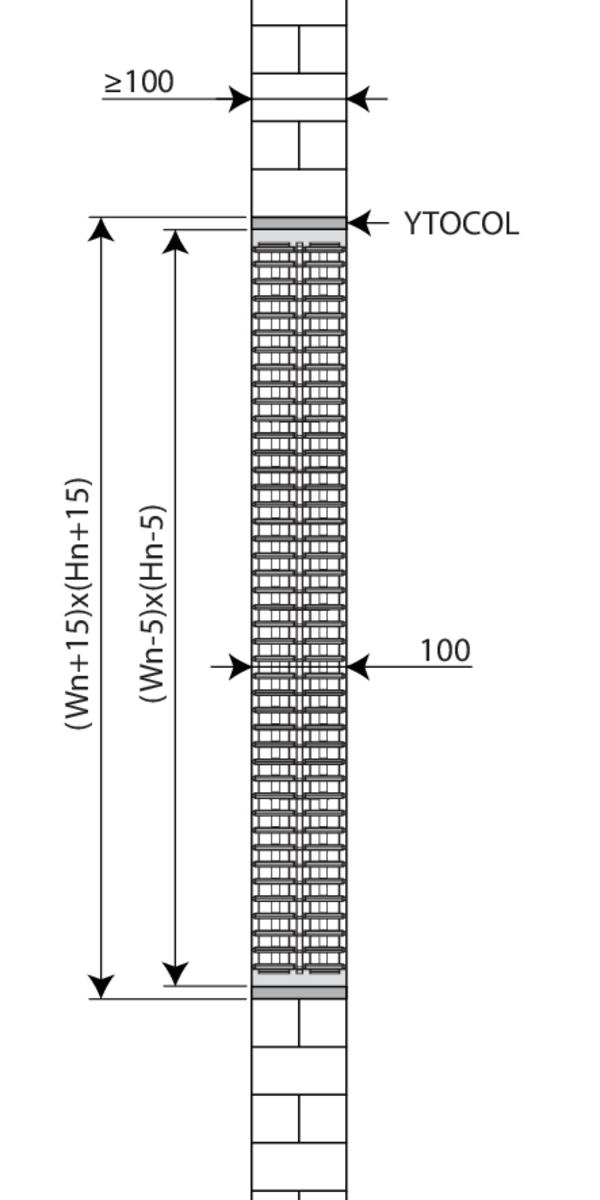

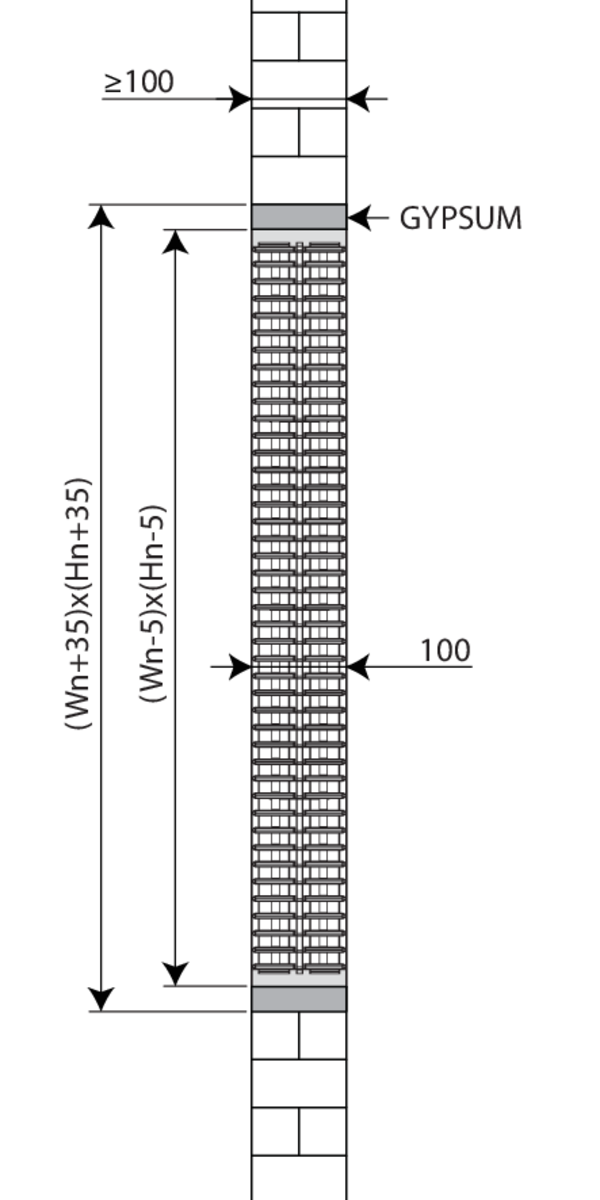

- Aerated concrete ≥ 100 mm | EI 120 (ve i o) | Gypsum / Ytocol | Type of installation: built-in, sleeves horizontal | 200x500 mm / 900x200 mm ≤ GE120-XL ≤ 1200x800 mm
- Aerated concrete ≥ 100 mm | EW 120 (ve i o) | Gypsum / Ytocol | Type of installation: built-in, sleeves horizontal | 200x500 mm / 900x200 mm ≤ GE120-XL ≤ 1200x800 mm
- Aerated concrete ≥ 100 mm | EI 180 (ve i o) | Gypsum / Ytocol | Type of installation: built-in in lower part of the wall, sleeves horizontal | 200x500 mm / 900x200 mm ≤ GE120-XL ≤ 1200x800 mm
- Aerated concrete ≥ 100 mm | EW 120 (ve i o) | Gypsum / Ytocol | Type of installation: built-in in lower part of the wall, sleeves horizontal | 200x500 mm / 900x200 mm ≤ GE120-XL ≤ 1200x800 mm

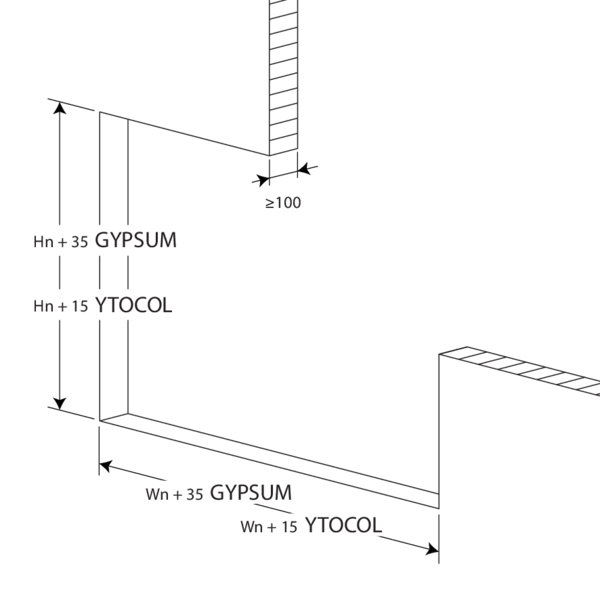

Provide a min. installation opening in the wall = Wn x Hn.
Maximum (Wn + 35) x (Hn + 35) for plaster (gypsum) and maximum (Wn + 15) x (Hn + 15) for Ytocol.
Maximum (Wn + 35) x (Hn + 35) for plaster (gypsum) and maximum (Wn + 15) x (Hn + 15) for Ytocol.

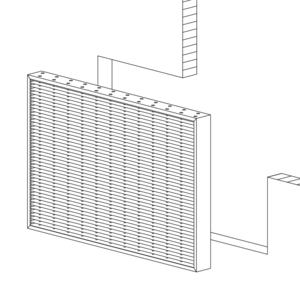

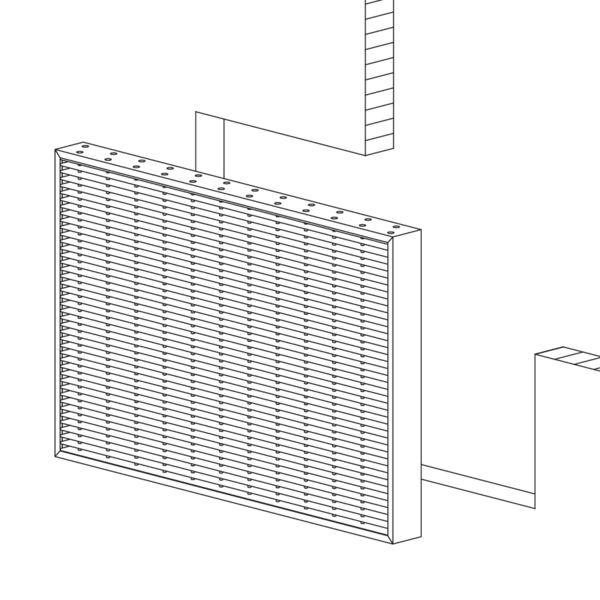

Mount the grill in the wall.
The product must be installed with the lamellas in their horizontal position.
The product must be installed with the lamellas in their horizontal position.

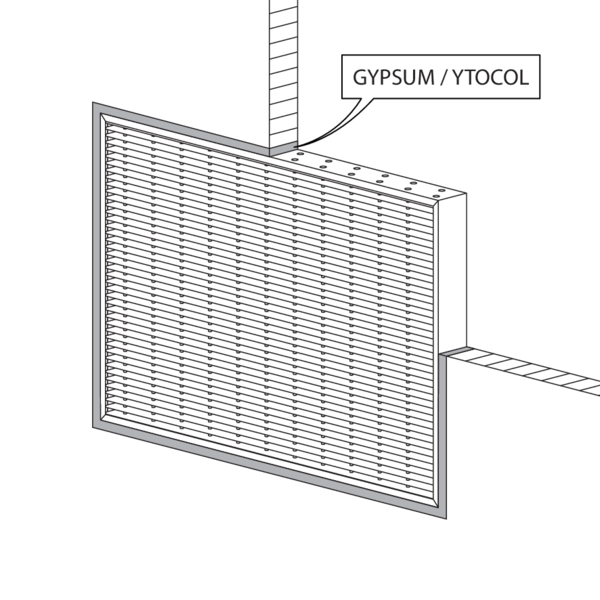

Fill the joint between the grill and the wall with plaster (gypsum) or Ytocol.
General remarks
- The installation must comply with the installation manual and the classification report.
- Rf-t fire resistant grills are always tested in standardised constructions according to EN 1634-1/EN 1364-1/EN 1364-2. The achieved results are valid for similar supporting constructions with a fire resistance, thickness and density equal or superior to the supporting construction used during the test.
