GE120-XL - Dimensions

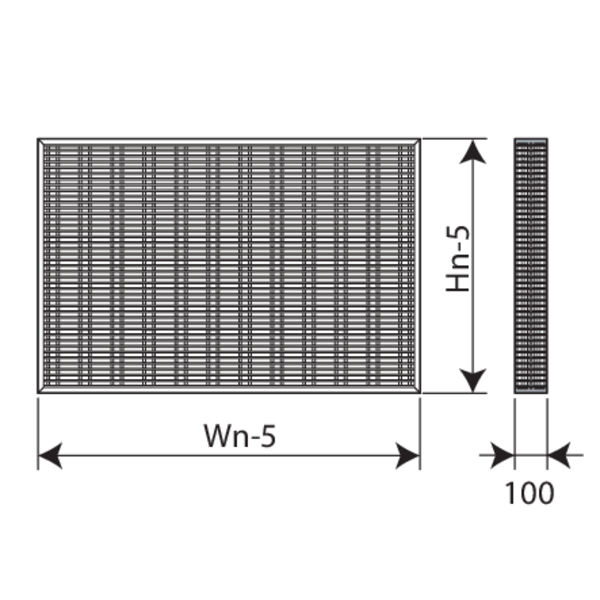

Range and dimensions

Hn\Wn [mm]900x2001200x800
  • Wn/Hn in steps of 100 mm

Weights Scroll down/right to view the entire table

Hn\Wn [mm]200300400500600700800900100011001200
200kg-------9,210,211,212,1
300kg-------13,314,716,117,5
400kg-------16,718,420,221,9
500kg5,77,810,012,114,316,418,620,822,925,127,2
600kg6,69,111,614,116,619,221,724,226,729,231,7
700kg7,710,713,616,519,422,425,328,231,134,137,0
800kg8,712,015,218,521,825,128,431,634,938,241,5
