MG2 - Dimensions

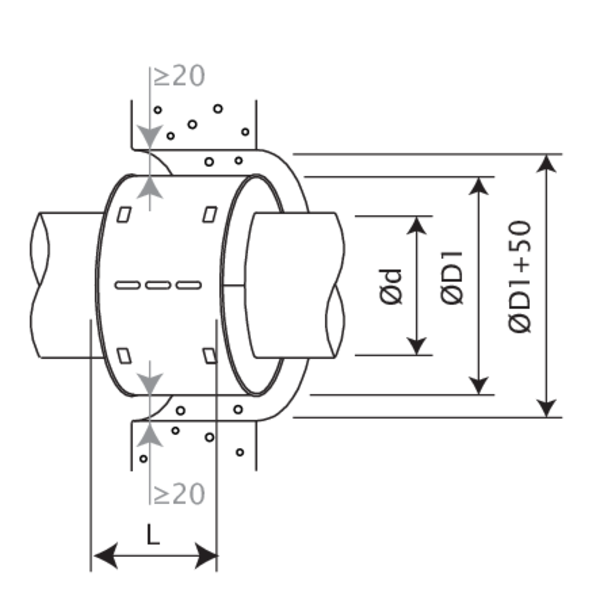

Range and dimensions

Ød [mm]40505663758090100110125
D1 [mm]67778390102123133143153182
L [mm]858585858585858585105
Ød [mm]160
D1 [mm]215
L [mm]105
  • D1 = outside diameter of the collar - d = inside diameter of the collar, corresponding to the outside diameter of the pipe

Weights Scroll down/right to view the entire table

Ød [mm]40505663758090100110125160
kg0,20,20,20,20,30,40,50,60,61,21,5
