MG2-A XL - Installation

Installation in rigid wall and floor

The product was tested and approved in:
  • see the classification overview.
  • Mounting is authorised in supporting constructions with a thickness and/or density equal or superior to the supporting construction used during the test, as described in EN 1366-3.
1

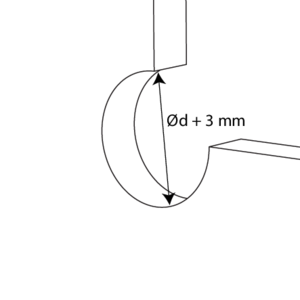

Provide an installation opening of Ød + 3 mm.
2

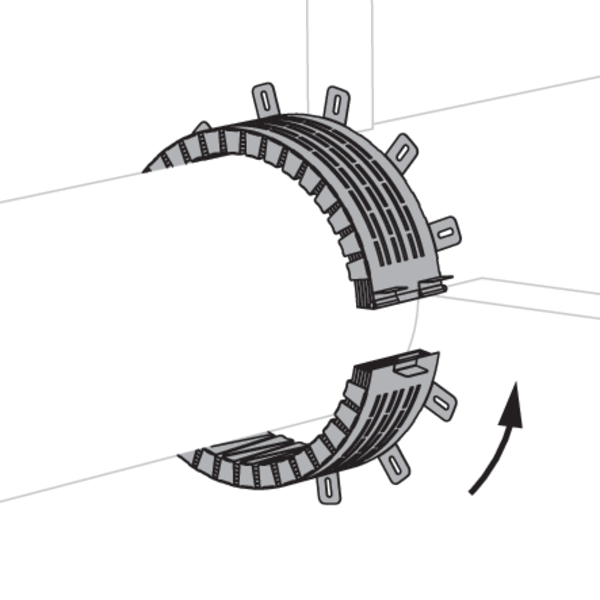

Install the plastic pipe in the opening and place the collar around the pipe.
3

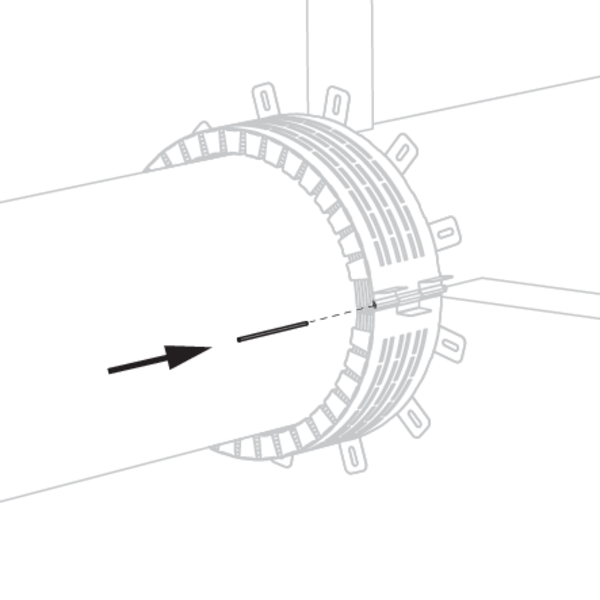

Close the collar with the locking device. Insert the provided axis through the hinges and fold the protective flap.
4

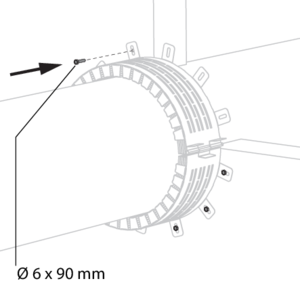

Use standard screws Ø 6 x 90 mm to affix the collar to the wall/floor.
5

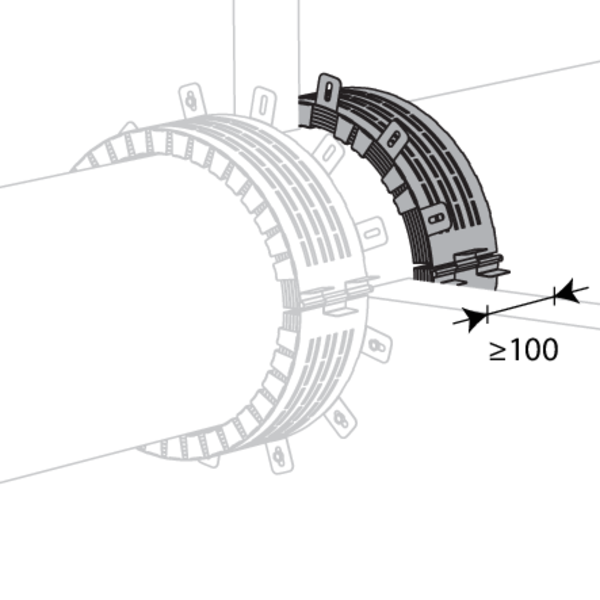

Place a collar on the other side in the same way.
6

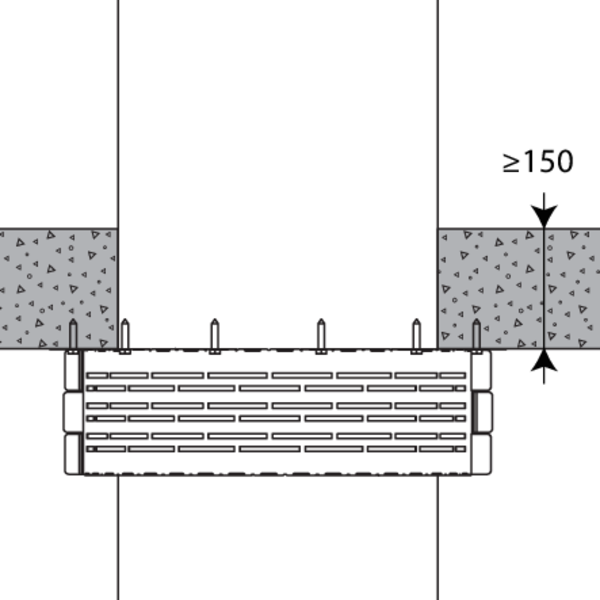

One collar on the bottom side of the floor is sufficient for floor penetrations.
7

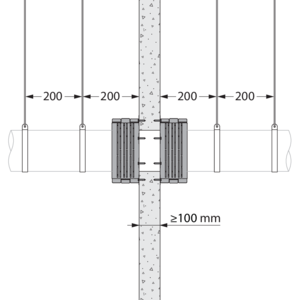

The pipe must be supported in order to guarantee the well-functioning of the sealing during a fire. Supports and fastenings should be realised according to the rules of good craftsmanship.

General remarks

  • The installation must comply with the installation manual and the classification report.
  • The pipe must be supported in order to guarantee the well-functioning of the sealing during a fire. Supports and fastenings should be realised according to the rules of good craftsmanship.
