MG2-A U - Installation

Installation in rigid wall and floor

The product was tested and approved in:
  • see the classification overview in the Declaration of Performance.
  • Mounting is authorised in supporting constructions with a thickness and/or density equal or superior to the supporting construction used during the test, as described in EN 1366-3.
1

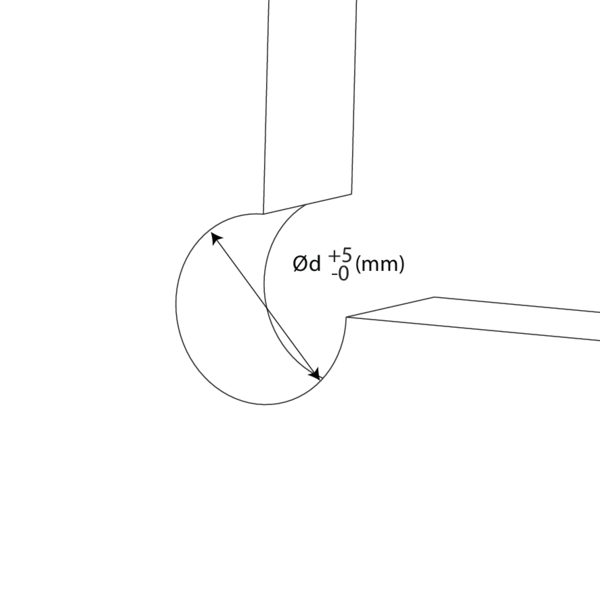

Provide an installation opening of Ød mm.
2
Place the plastic pipe.

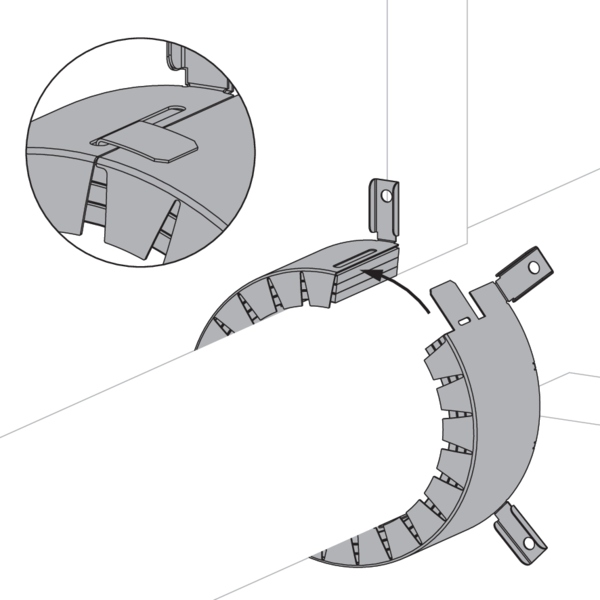

Keep one end of the collar in place with one hand whilst bending the collar around the pipe with the other hand.
In order to close the collar, place the metallic flap through the foreseen opening. Then place the anchors on top of each other. Fold the flap back to the right to close the collar.
3

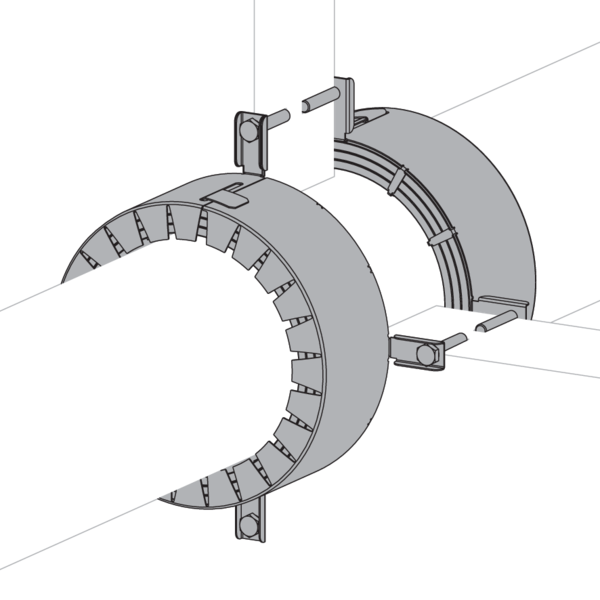

Reinforced concrete: place expander bolts in the pre-drilled holes Ø 6mm and fasten them. Aerated concrete: fix with universal M6 screws.
4

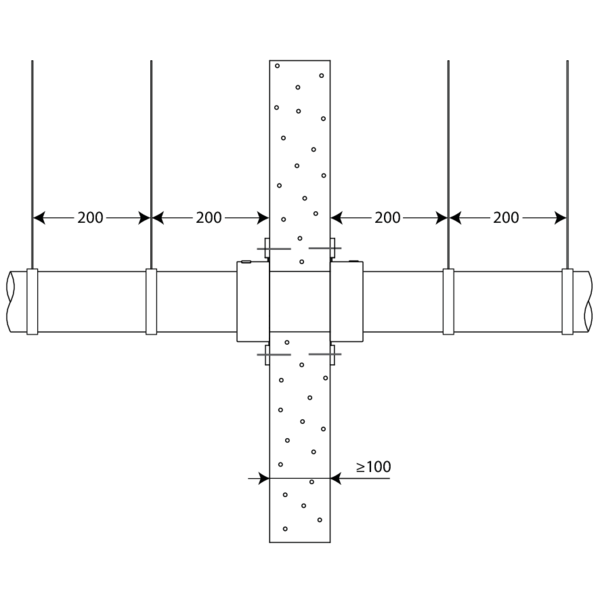

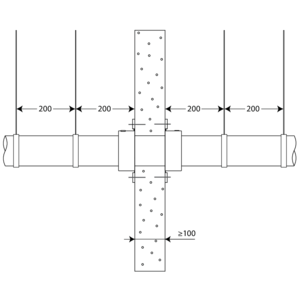

Place a collar on the other side in the same way.
Apply the label nearby the collar.
5

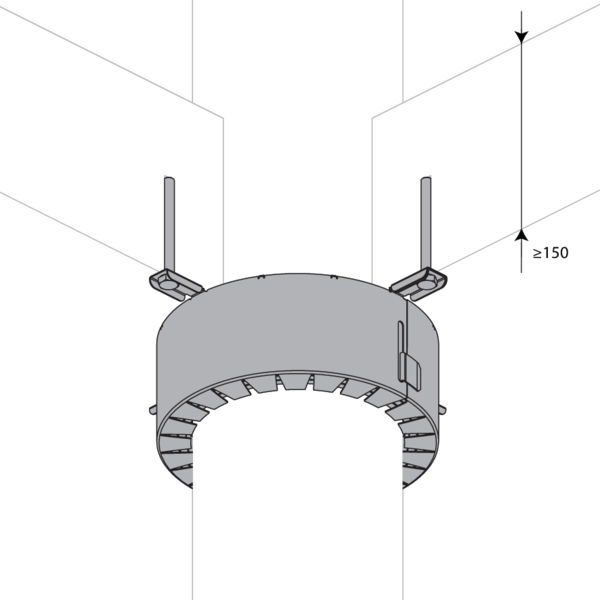

One collar on the bottom side of the floor is sufficient for floor penetrations.

Installation in flexible wall (metal stud gypsum plasterboard wall)

The product was tested and approved in:
  • see the classification overview in the Declaration of Performance.
  • Mounting is authorised in supporting constructions with a thickness and/or density equal or superior to the supporting construction used during the test, as described in EN 1366-3.
1

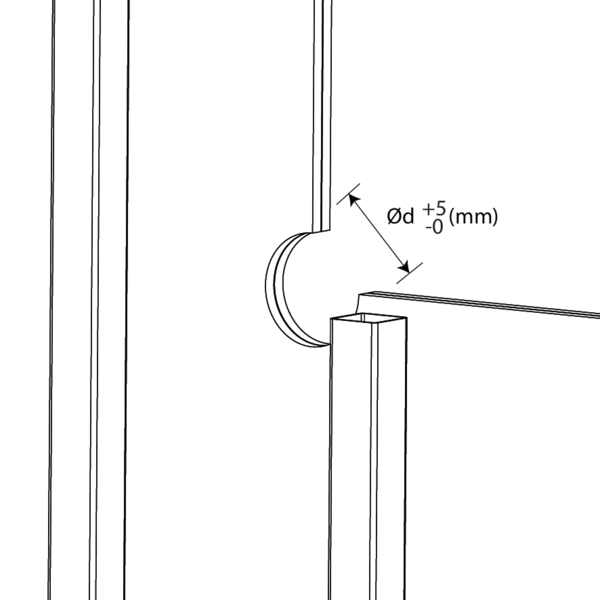

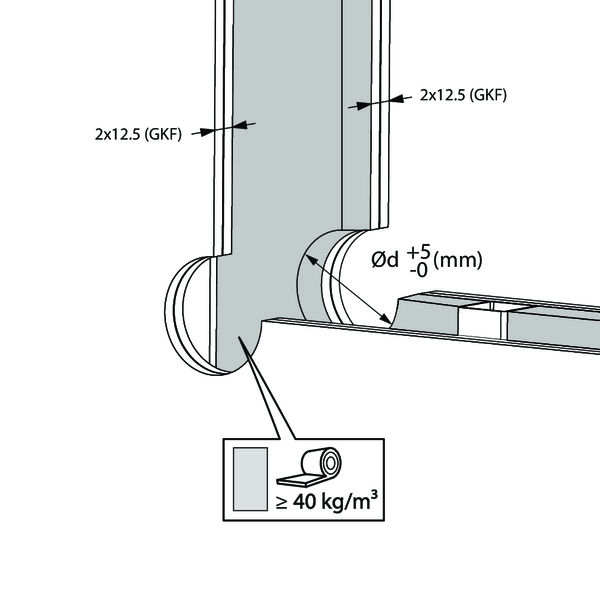

Fix two gypsum boards type F with a tickness of 12,5 mm to one side of the metal stud wall.
Provide an installation opening of Ød mm.
2
Insulate the wall and finish with two gypsum plasterboards type F.
3
Place the plastic pipe.

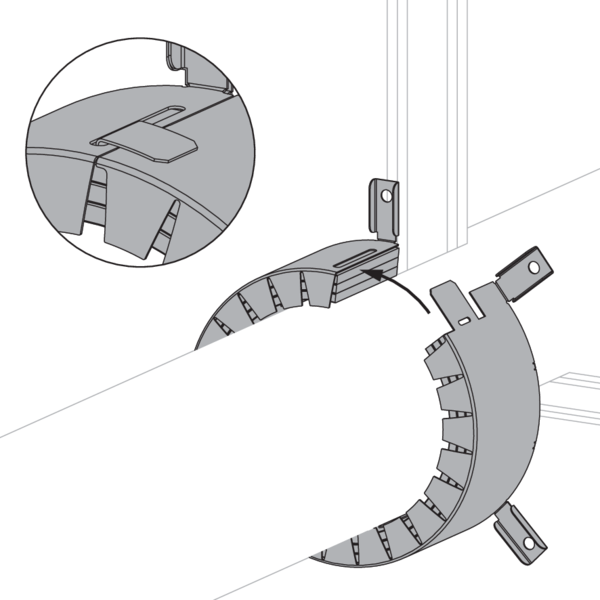

Keep one end of the collar in place with one hand whilst bending the collar around the pipe with the other hand.
In order to close the collar, place the metallic flap through the foreseen opening. Then place the anchors on top of each other. Fold the flap back to the right to close the collar.
4

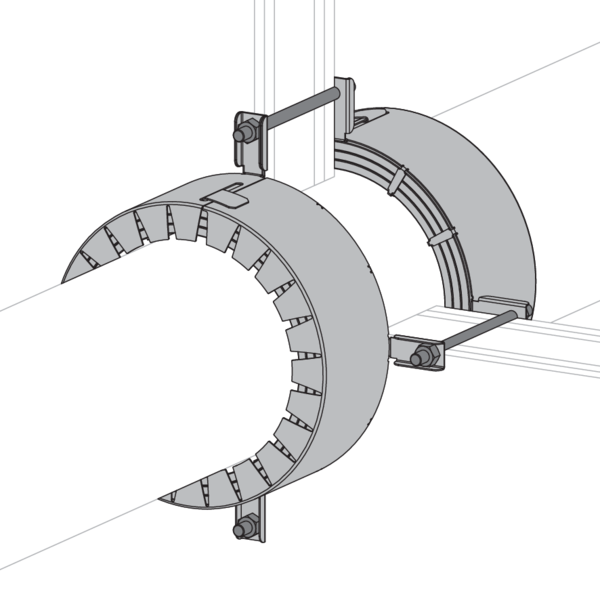

The MG2-A U must be fixed by threaded rods, washers and bolts (M6).

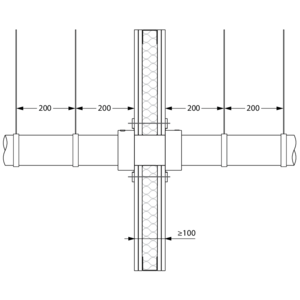

Place a collar on the other side in the same way.
Apply the label nearby the collar.

Installation in flexible wall (metal stud gypsum plasterboard wall) with screws

The product was tested and approved in:
  • see the classification overview in the Declaration of Performance.
  • Mounting is authorised in supporting constructions with a thickness and/or density equal or superior to the supporting construction used during the test, as described in EN 1366-3.
1

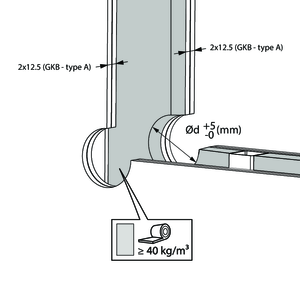

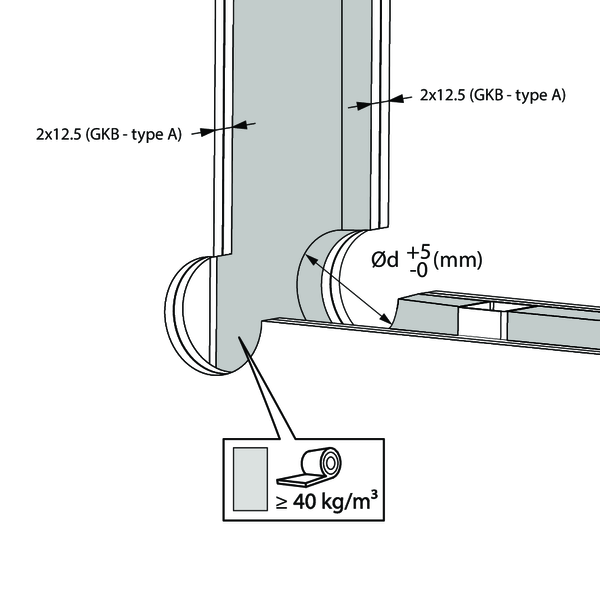

The flexible wall is made of two layers of gypsum board type A (GKB) with a thickness of 12,5 mm on each side of the metal stud.
Provide an installation opening of ød mm (up to ød + 5mm).
2
Place the plastic pipe.
Keep one end of the collar in place with one hand whilst bending the collar around the pipe with the other hand.
In order to close the collar, place the metallic flap through the foreseen opening. Then place the anchors on top of each other. Fold the flap back to the right to close the collar.
3

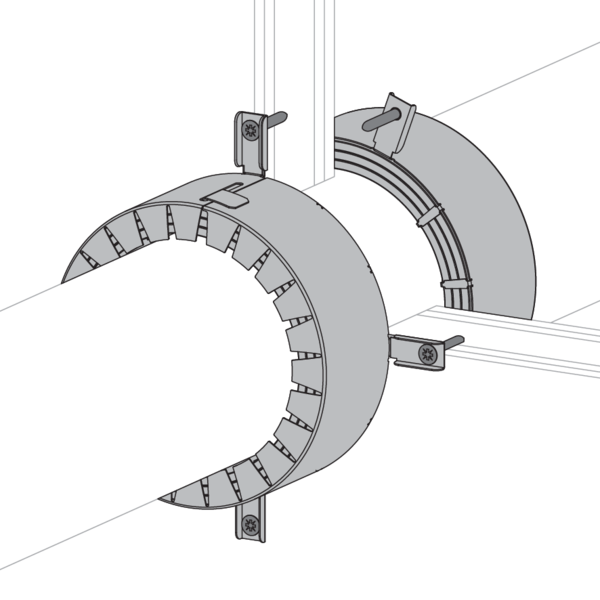

The MG2-A U can be fixed with screws of 40mm length.
Place a collar on the other side in the same way.
The screws don’t have to be facing each other on each side of the wall.
Apply the label nearby the collar.

General remarks

  • The installation must comply with the installation manual and the classification report.

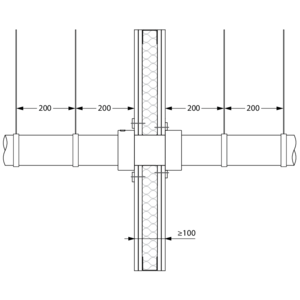

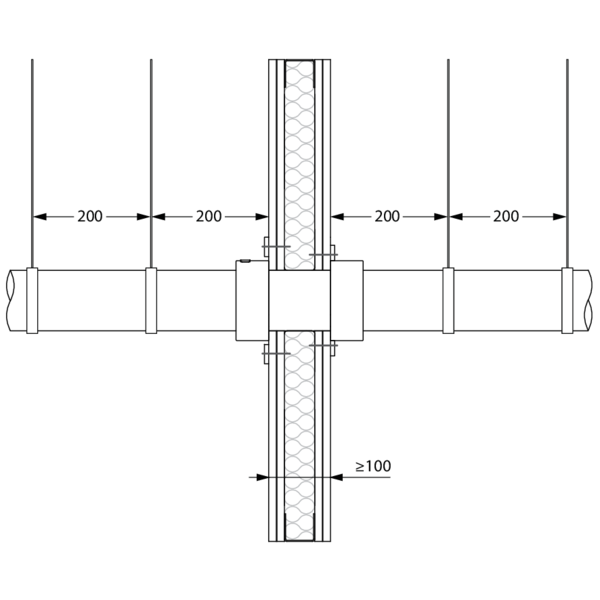

  • The pipe must be supported in order to guarantee the well-functioning of the sealing during a fire. Supports and fastenings should be realised according to the rules of good craftsmanship.
