MG-U - Dimensions

Range and dimensions

Ød [mm]3240505663758090100110
D1 [mm]495767739092101111121131
L [mm]96969696969696969696
Ød [mm]125140160
D1 [mm]150165185
L [mm]969696

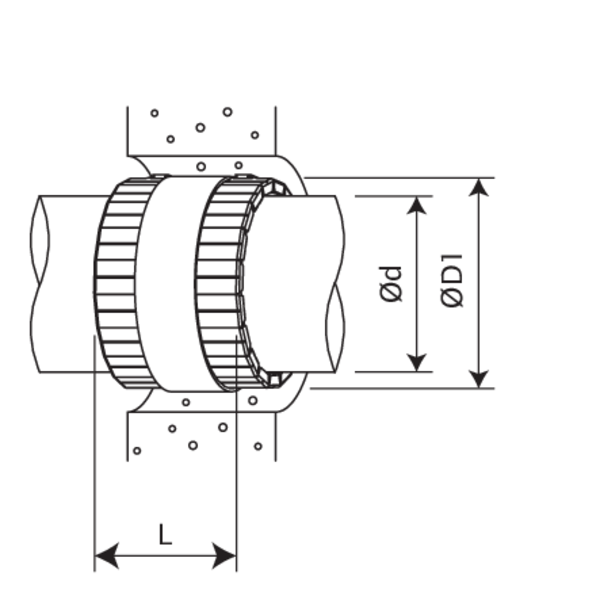

  • D1 = outside diameter of the collar - d = inside diameter of the collar, corresponding to the outside diameter of the pipe

Weights Scroll down/right to view the entire table

Ød [mm]3240505663758090100110125140160
kg0,20,20,20,30,30,30,40,50,50,50,70,80,9
