CU2-15 - Features

Features

  • Suitable for built-in installation
  • Air tightness in accordance with EN 1751: class ATC 4 (formerly B), class ATC 3 in option (formerly C)
  • Tested in accordance with EN1366-2 up to 1500 Pa
  • Operating mechanism outside the wall
  • Maintenance-free
  • For indoor use
  • Operating temperature: max. 50°C
  • Intermediate dimensions on request
  • Suitable for installation in rigid wall

Components

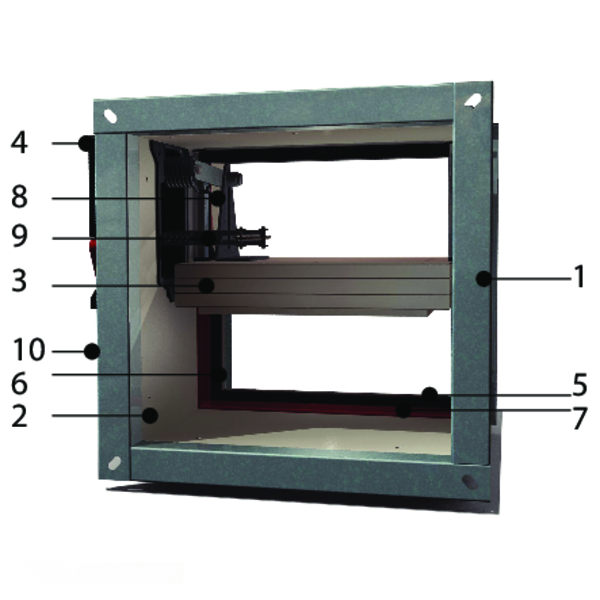

Components
  1. Connection flange PG30
  2. Casing made of refractory material
  3. Damper blade
  4. Operating mechanism
  5. Sealing cold smoke
  6. Blade bumper
  7. Intumescent strip
  8. Transmission with locking (open/closed)
  9. Fusible link
  10. Product identification
