CU-LT-1S - Features

Features

  • Tested according to EN 1366-2 up to 500 Pa
  • Suitable for surface-mounting on rigid wall, rigid floor and light wall (metal stud gypsum plasterboard wall, gypsum blocks)
  • Suitable for installation remote from the wall
  • Operating mechanism outside the wall
  • Maintenance-free
  • For indoor use
  • Intermediate dimensions on request
  • Operating temperature: max. 50°C

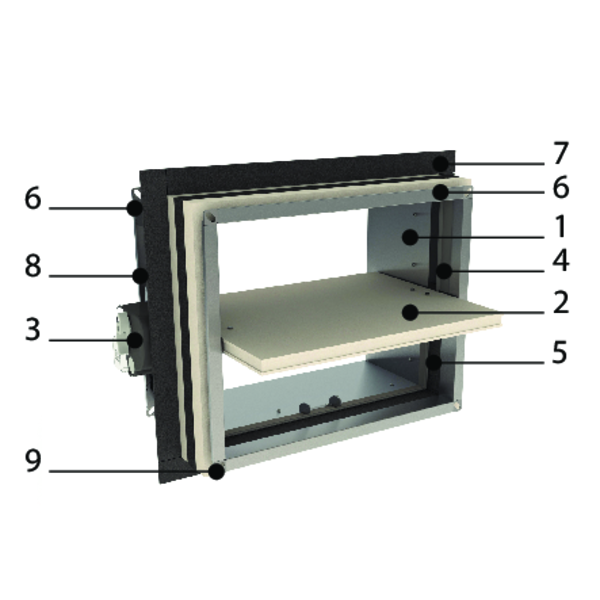

Components

Components
  1. Casing in galvanised steel
  2. Damper blade
  3. Operating mechanism
  4. Sealing cold smoke
  5. Intumescent strip
  6. Connection flange PG20
  7. Surface-mounting frame
  8. Product identification
  9. Bolt and cage nut
