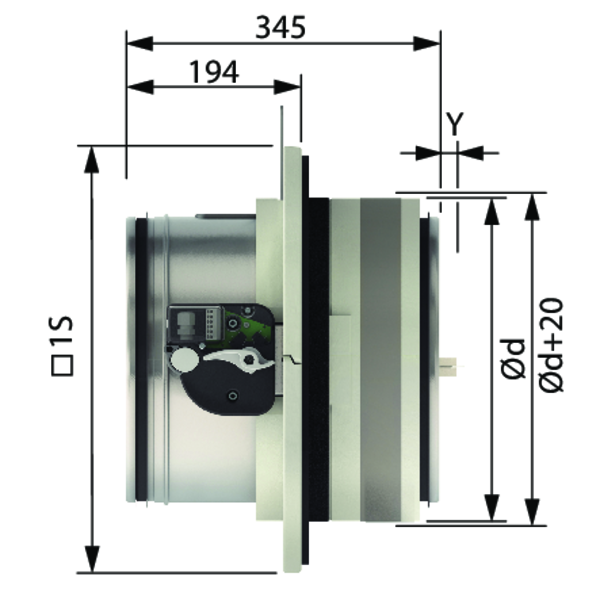

CR60-1S - Dimensions
Range and dimensions
| ØDn [mm] | 100 | 125 | 200 | 250 | 315 |
|---|
- Exceeding damper blade: 20 mm for ØDn 315 mm
| ØDn [mm] | 315 |
|---|---|
| x | - |
| y | 20 |
- CR60 + ONE
| MFUS | ONE (X) | BFL(T) | |
|---|---|---|---|
| P | 72 | 80 | 63 |
| Q | 123 | 136 | 100 |
| Z | 70 | 75 | 58 |
Weights Scroll down/right to view the entire table
| ØDn [mm] | 100 | 125 | 200 | 250 | 315 |
|---|---|---|---|---|---|
| kg | 5,6 | 6,3 | 9,3 | 10,8 | 12,0 |
