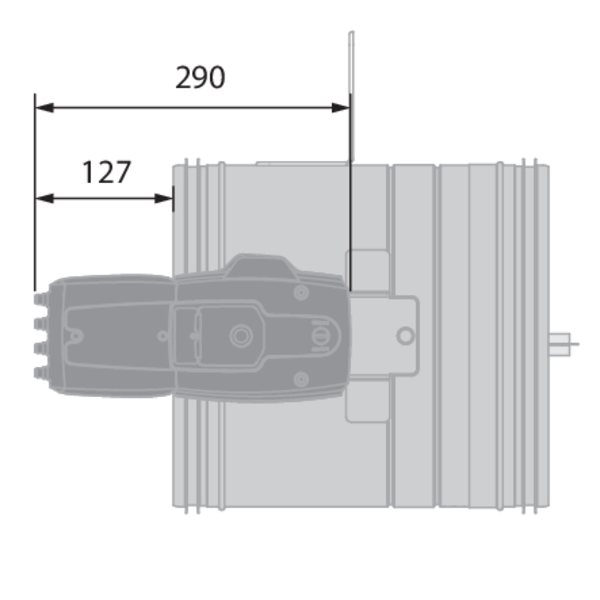

CR120-L500 - Dimensions
Range and dimensions
| ØDn [mm] | 100 | 125 | 150 | 160 | 180 | 200 | 250 | 300 | 315 | |
|---|---|---|---|---|---|---|---|---|---|---|
| L [mm] | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |

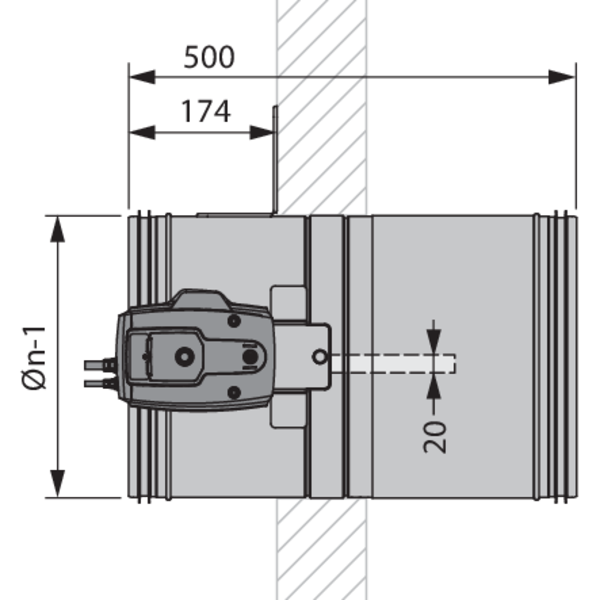

- Exceeding damper blade: 20 mm for ØDn 315 mm

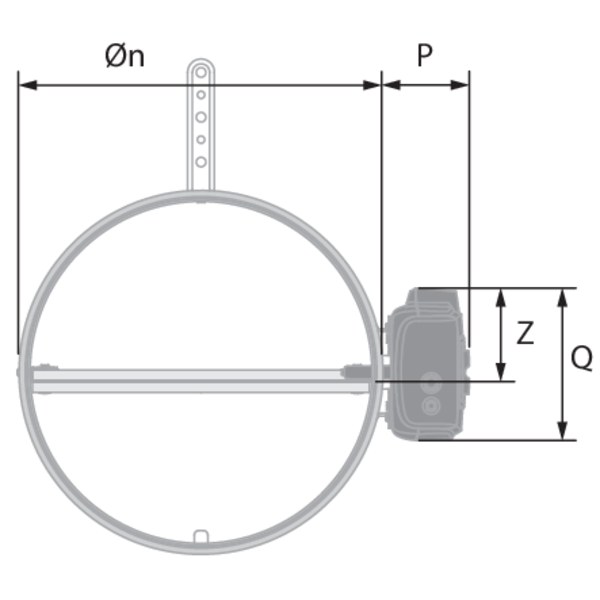

| MFUS | ONE (X) | BFL(T) | |
|---|---|---|---|
| P | 72 | 80 | 63 |
| Q | 123 | 136 | 100 |
| Z | 70 | 75 | 58 |
Weights Scroll down/right to view the entire table
| ØDn [mm] | 100 | 125 | 150 | 160 | 180 | 200 | 250 | 300 | 315 |
|---|---|---|---|---|---|---|---|---|---|
| kg | 1,5 | 1,9 | 2,2 | 2,3 | 2,8 | 3,0 | 3,8 | 4,9 | 5,0 |
